100mm/Min 10T Vessel Turning Rolls , Boiler Self Aligning Welding Rotator
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: weldsuccess
Certification: CE
Model Number: HGZ-10
High Light:

10T vessel turning rolls


100mm/min vessel turning rolls


Boiler self aligning welding rotator

Payment & Shipping Terms
Packaging Details: Seaworthy Packages
Delivery Time: 10days
Payment Terms: T/T, L/C
Supply Ability: 50sets/month
Name: Self-aligning Welding Turning Rolls
Rated Load: 10T
Roller Speed: 100--1000mm/min
Motor Make: CE Certified Interlek
Inverter Make: France Schneider
Applicable Industry: Boiler, Chemical, Automatic Welding
Product Description

Standard 10T Pressure Vessel Vessel Turning Rolls / Pipe Rotators For Welding

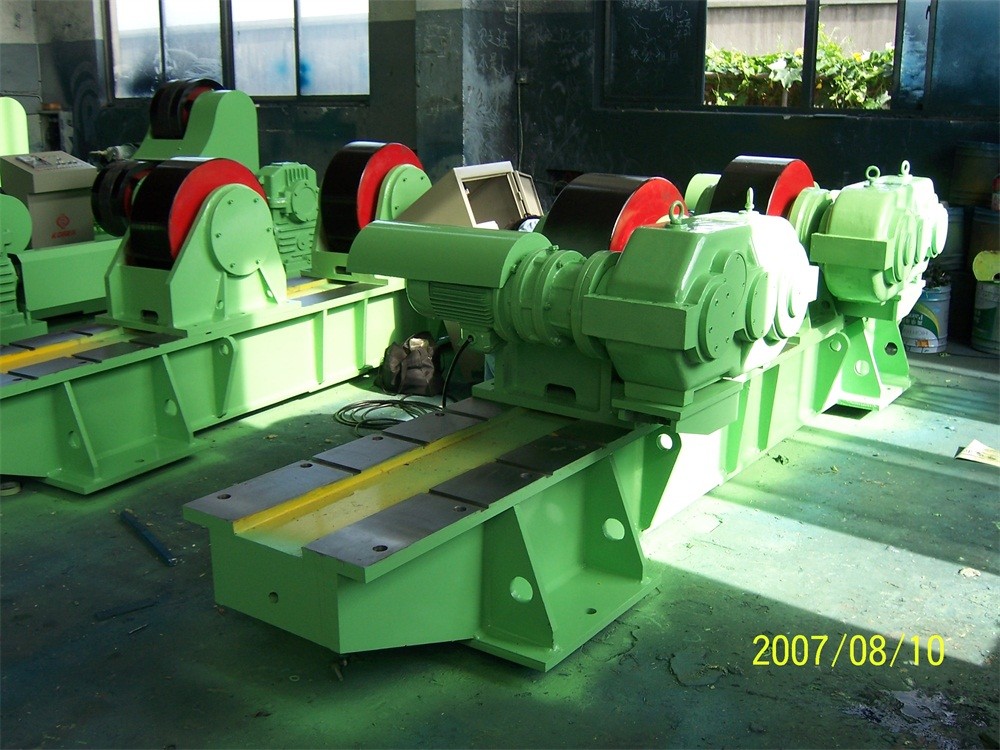

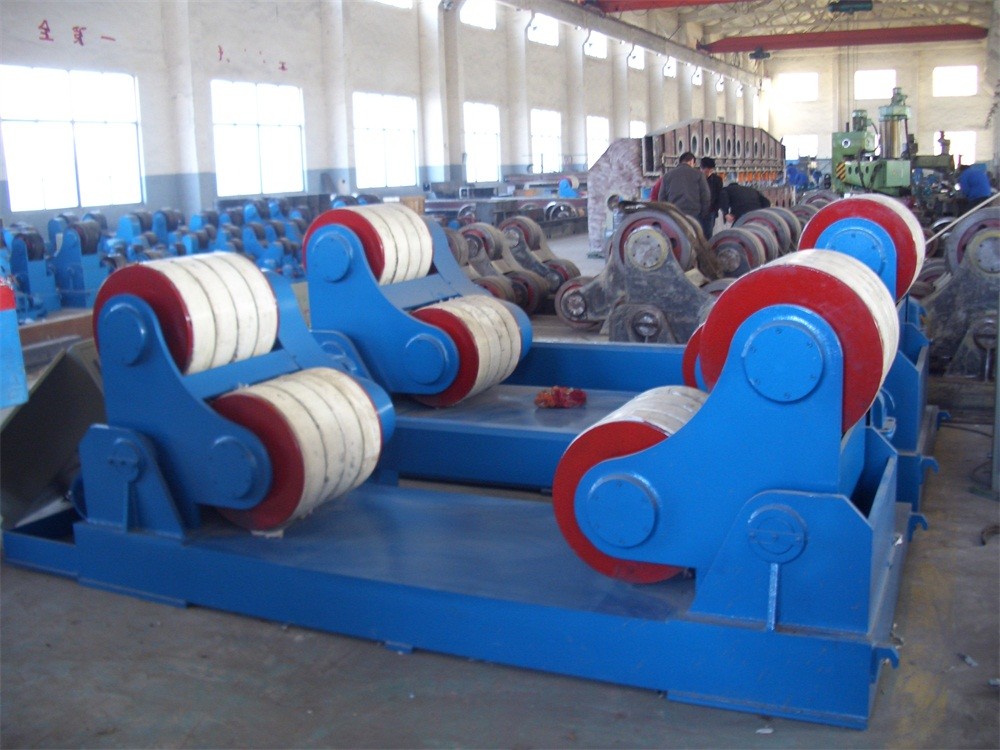

Self-aligning Welding Turning Rolls  Introduction:
This series is self-alignment/self centering type. Our welding roller beds designed for maximum workpiece loads from 5T to 60T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding. We also provide tailor-made welding rotator according to your special requirements.

Model HGZ5 HGZ10 HGZ20 HGZ40
Max loading T 5 10 20 40
Suit diameter mm Min 250 320 500 600
Max 2300 2800 3500 4200
Rubber Roller mm Dia 250 300 350 400
Width 100 120 120 120
Metallic roller mm Dia 244 294 344 394
Width 20 25 30 40
Linear speed m/h 6--60
Speed Control VFD
Motor power kW 0.75 1.1 1.5 3
Roller distance mm 900 1100 1350 1600
Above are our standard models and parameters, and it can be designed and manufactured on request.



 welding turning rolls of features
 The standard models of our roller beds have the following features:

  • Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers;
  • Schneider inverter to realize VFD speed control and synchronous rotation of rollers;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
