Wind Tower Pipe Welding Rotator 10T Self Aligning Turning Rolls CE
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: weldsuccess
Certification: CE
Model Number: HGZ series
High Light:

Wind Tower Pipe Welding Rotator


CE Pipe Welding Rotator


10T tank rotator

Payment & Shipping Terms
Packaging Details: Seaworthy packages
Delivery Time: within 15days
Payment Terms: T/T, L/C
Supply Ability: 50sets/months
Name: 10T Self Aligning Welding Rotator
Roller Wheel: Pu
Suitable Pipe: 320--2800mm
Rotation Speed: 100--1000mm/min (VFD)
Control: Wireless Type Remote Control Box
Applicable Industries: Wind Tower, Boiler, Chemical, Etc
Product Description

Pipe Welding Rotator For Wind Tower , 10T Self Aligning Turning Rolls


the Self Aligning Turning Roll of  Description



The HGZ rotator has a favourable price-performence ratio yields and will guarantee a quick payback of your investment.


HGZ rotators can be supplied with a capacity from 5.000 Kg up to 500 Tons.


We also provide tailor-made HGZ welding rotators according to your special requirements.




Model HGZ5 HGZ10 HGZ20 HGZ40
Max loading T 5 10 20 40
Suit diameter mm Min 250 320 500 600
Max 2300 2800 3500 4200
Rubber Roller mm Dia 250 300 350 400
Width 100 120 120 120
Metallic roller mm Dia 244 294 344 394
Width 20 25 30 40
Linear speed m/h 6--60
Speed Control VFD
Motor power kW 0.75 1.1 1.5 3
Roller distance mm 900 1100 1350 1600
Above are our standard models and parameters, and it can be designed and manufactured on request.



Main Features:


The self adjusting tank rotators are designed for heavy duty rotating and positioning works. This rotator have an excellent pressure distribution due to the 4 wheels per tool which leads to less distortion of the work piece especially when the wall

of the item is thin.


 Top-class electronic components

 Stepless adjustable speed of the driven part

 Steel wheels which enclose locked solid rubber tyres

 The strong and durable construction creates a very high stability

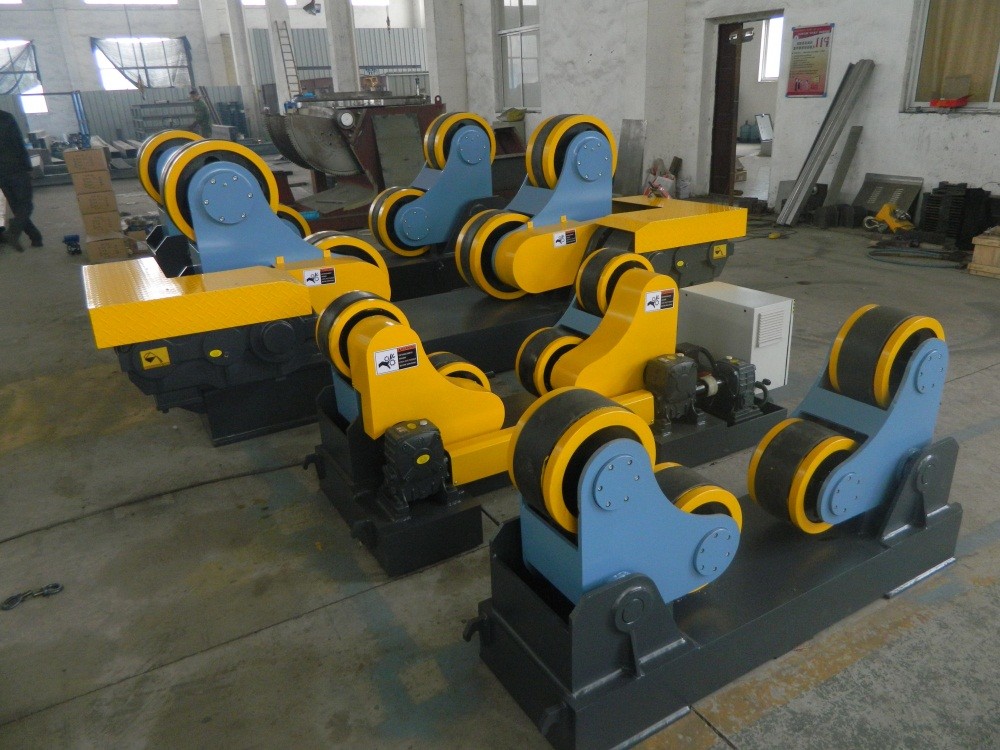

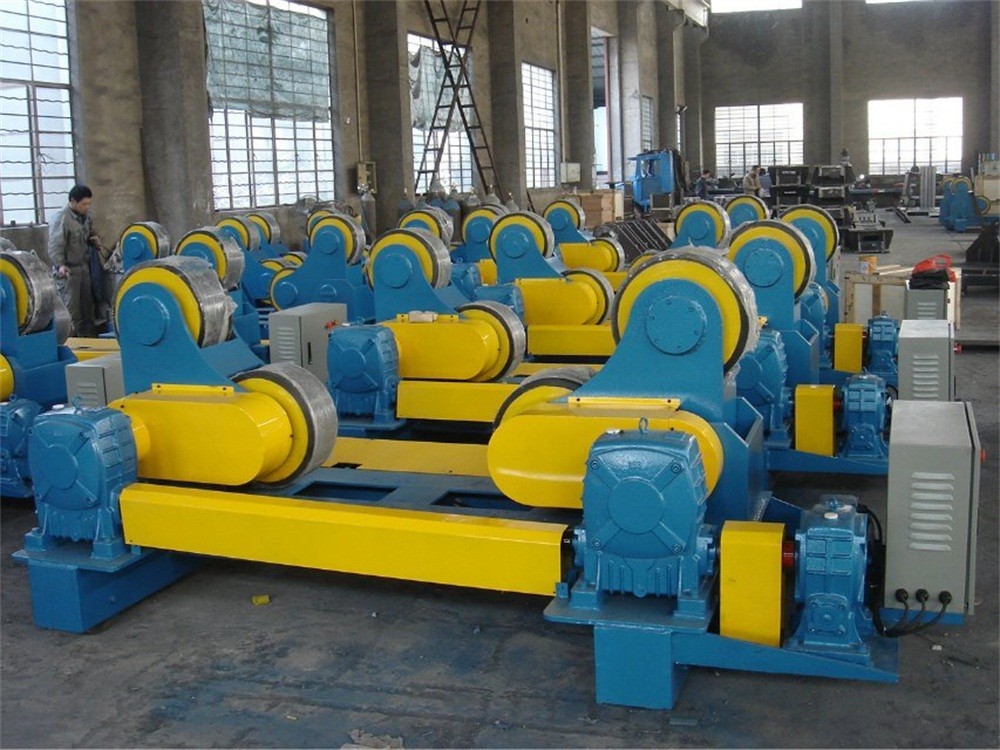

Reference Photos:



Wind Tower Pipe Welding Rotator 10T Self Aligning Turning Rolls CE 0
