Self Centering 1.5KW 20T Pipe Welding Rotator / Roller For Boiler
1set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: weldsuccess
Certification: CE
Model Number: HGZ-20
High Light:

Boiler Pipe Welding Rotator

,

20T Pipe Welding Rotator

,

1.5KW welding roller

Payment & Shipping Terms
Packaging Details: Seaworthy Package
Delivery Time: within 10days
Supply Ability: 50sets/month
Specifications
Name: Self Aligning Welding Rotator
Model: 60T
Suitable Boiler Diameter: 750--5000mm
Roller Material: Rubber Roller + Metallic Roller
Motor Power: 1.5KW
Linear Speed M/h: 6--60m/h
Inverter Make: France Schneider
Application: Windmill Welding , Pressure Vessel
Product Description

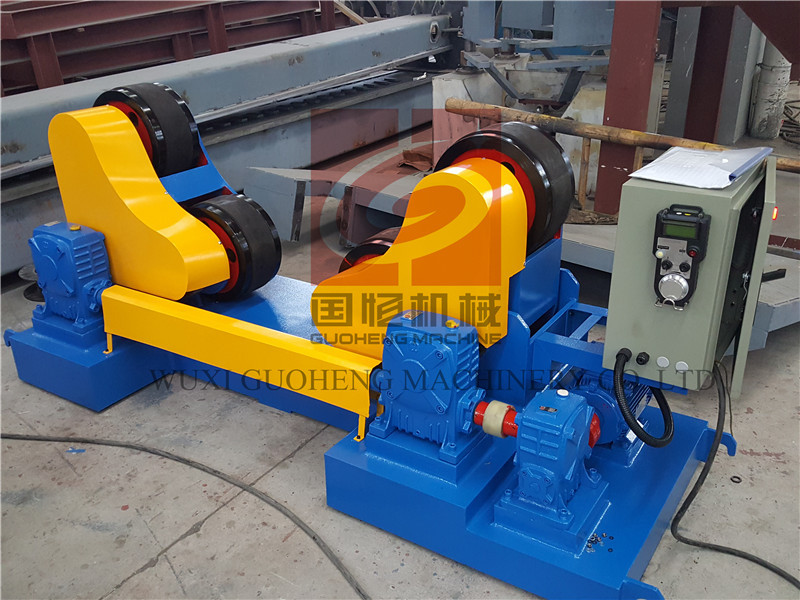

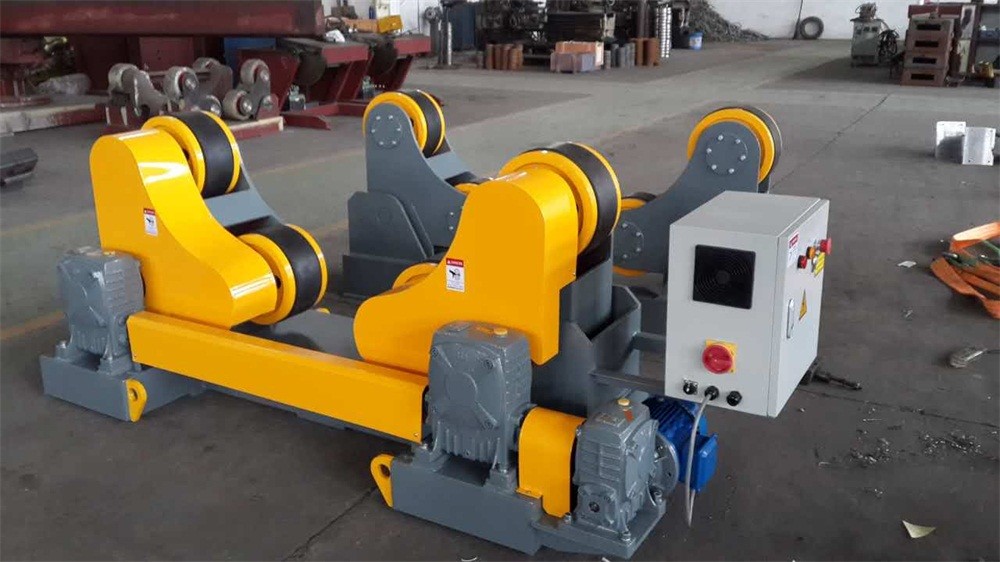

Self Aligning Welding Rotators for Pressure Vessel Welding, Self Centering Turning Rolls



Description:



This series is self-alignment / self centering type. Our welding roller beds designed for maximum workpiece loads from 5T

to 200T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding. We also provide tailor-made welding rotator according to your special requirements.





Specifications



Model HGZ5 HGZ10 HGZ20 HGZ40 HGZ60 HGZ80 HGZ100 HGZ150 HGZ200
Max loading T 5 10 20 40 60 80 100 150 200
Suit diameter mm Min 250 320 500 600 750 850 1000 1200 1500
Max 2300 2800 3500 4200 5000 5500 6000 6500 8000
Rubber Roller mm Dia 250 300 350 400 450 500 500 550 550
Width 100 120 120 120 120 120 120 120 120
Metallic roller mm Dia 244 294 344 394 444 494 494 540 540
Width 20 25 30 40 50 60 80 100 100
Linear speed m/h 6--60
Speed Control VFD
Motor power kW 0.75 1.1 1.5 3 4 4.4 4.4 5.5 7.5
Roller distance mm 900 1100 1350 1600 1800
Above are our standard models and parameters, and it can be designed and manufactured on request.




Pipe welding features:

  • Roller material options: Metallic or PU roller;
  • Undercarriage/travel boogie;
  • Interface for integral control with welding column&boom;
  • Foot switch;
  • Servo drive;
  • Anti-explosion motor&control panel;
