40T Pipe Welding Rotator
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: weldsuccess
Certification: CE
Model Number: HGZ-40
High Light:

40T Pipe Welding Rotator


20m/h Pipe Welding Rotator

Payment & Shipping Terms
Packaging Details: Seaworthy Packing
Delivery Time: 15days
Supply Ability: 50sets/month
Name: Pipe Welding Rotators
Load Capacity: 40t
Roller Material: PU (high Temperature Resistant)
Suitable Pipe Dia.: 600--4200mm
Speed Adjusting: 6--60m/h
Application: Self Aligning
Product Description

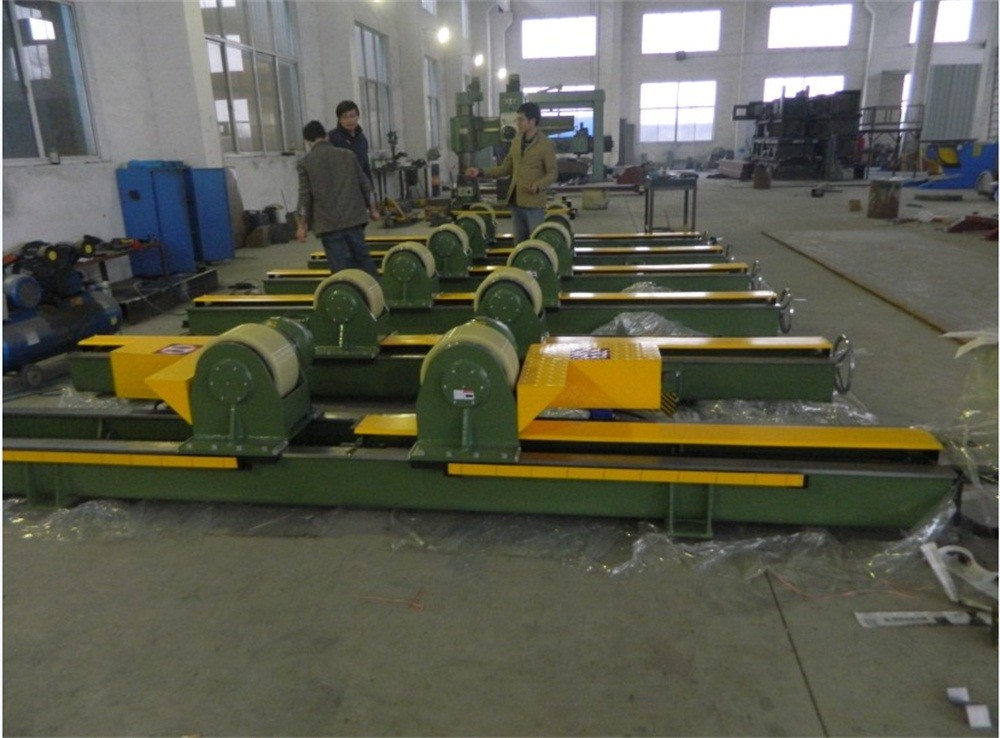

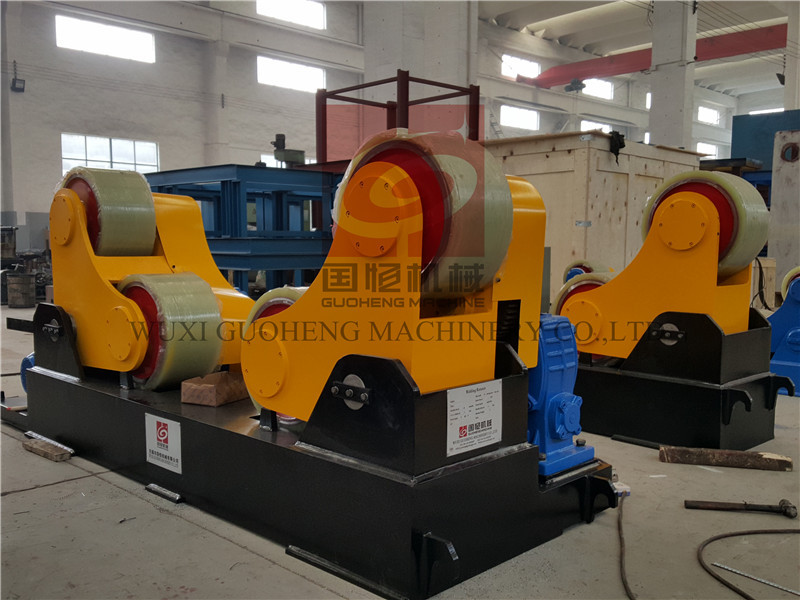

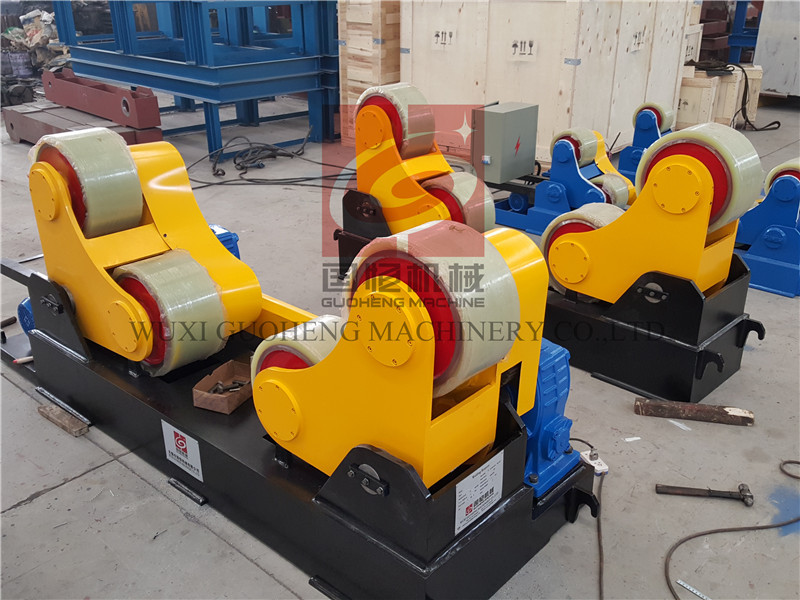

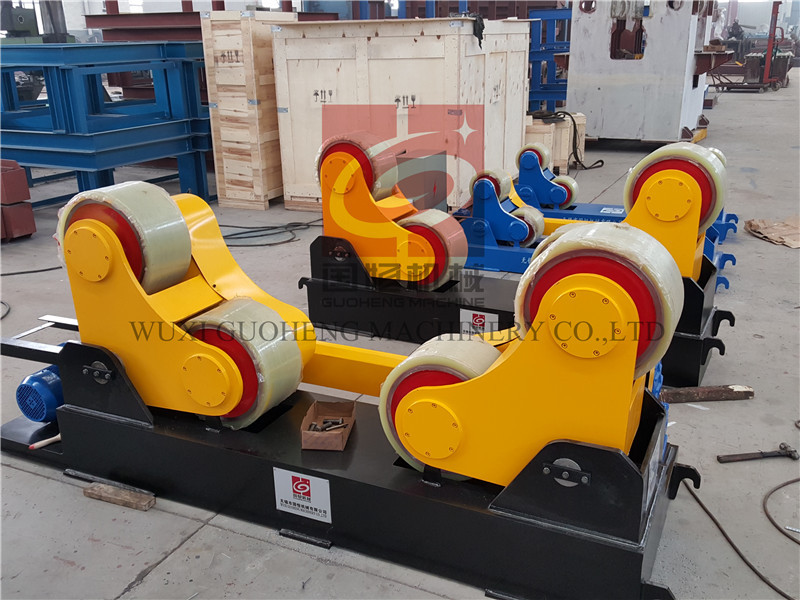

PU Self Aligning Welding Rotator , 40T Self Centering Roller Beds




  • Pipe welding, wind tower, boiler, chemical, etc
  • Wind Tower Welding , Windmill Welding , Pressure Vessel ,
  • Chemical Equipment , Piping System , Boiler , Etc


Pipe rollers for welding of Parameters :


Model HGZ20 HGZ40 HGZ60
Max loading T 20 40 60
Suit diameter mm Min 500 600 750
Max 3500 4200 5000
Rubber Roller mm Dia 350 400 450
Width 120 120 120
Metallic roller mm Dia 344 394 444
Width 30 40 50
Linear speed m/h
Speed Control
Motor power kW 1.5 3 4
Roller distance mm 1350 1600 1800
Above are our standard models and parameters, and it can be designed and manufactured on request.

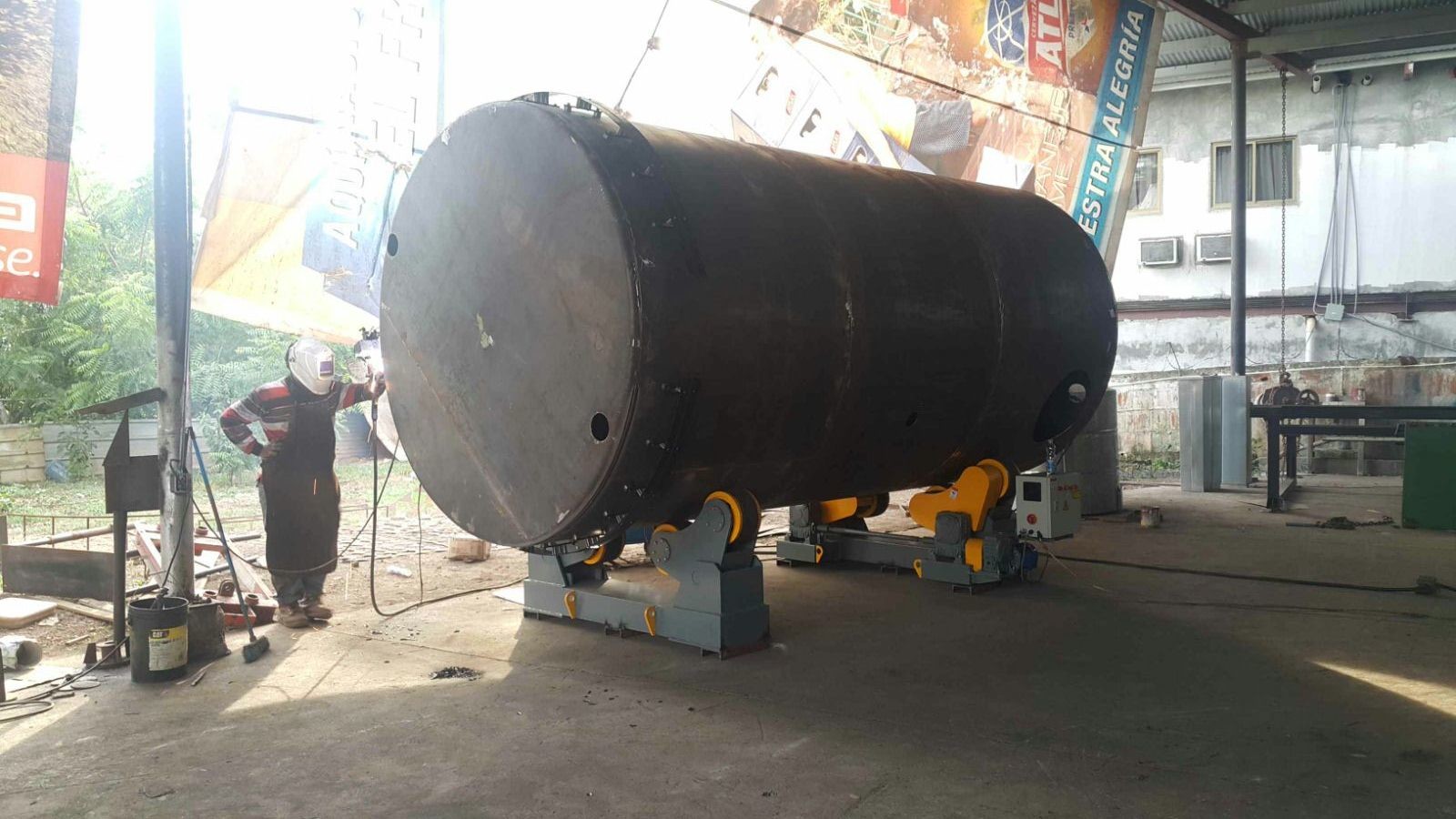

This series is self-alignment/self centering type. These welding rotators are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.


The standard models of our roller beds have the following features:

  • Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers;
  • Schneider inverter to realize VFD speed control and synchronous rotation of rollers;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
