Painting 200T Welding Positioner Rotator 1000mm-7000mm For Heavy Vessel
1set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: weldsuccess
Certification: CE, ISO9000
Model Number: HGFK series
OEM: Acceptable
High Light:

200T welding positioner rotator

,

1000mm welding positioner rotator

,

Heavy Vessel welding rotator

Payment & Shipping Terms
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 20sets/month
Price terms: FOB (Shanghai) or CIF (named port)
Specifications
Name: Welding Rotator
Type: Welding Turning Roll
Roller Material: Rubber Or PU Or Metal
Loading Capacity: 200t/500t
Suitable work-piece: 1000mm-7000mm
Usage: Welding Rotator,Pipe Welding,welding/painting
Product Description

Painting 200T Pipe Welding Rotator For Heavy Vessel Automatic Welding





Description​



This kind of turning-rolls or pipe welding rotators are applicable for narrow gap vessel welding on thick-wall cylinder, or it is necessary to prevent axial drift of work-piece during welding. Its adjustment is adopted with roller up-lift type, which is advanced in structure, complete in function,

easy in operation and reliable in performance. So it is ideal equipment for improving welding quality and realizing welding automation.

We also tailor made this type of pipe welding rotator upon your requirements. Please communicate with us for more details.





The self-aligning welding rotator of  Specifications:



Model

HGFK200

HGFK500

Max loading T

200

500

Driving capacity T

200

500

Suit diameter mm

Min

1000

1000

Max

7000

7000

Metallic Roller mm

Dia

700

800

Width

260

350

Driving motor power Kw

2*4

2*7.5

Linear speed mm/min

100—1000

Speed Control

VFD

Anti-drift accuracy mm

±1.5mm

Anti-drift type

Double up-lift type

Conduction current A

2000

Above are our standard models and parameters, and it can be designed and manufactured on request.




advantage



  1. ISO9000&CE certified;
  2. International warranty;
  3. Punctual delivery;
  4. Professional and experienced engineer team to ensure the advanced design about structure and electric;
  5. Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  6. Professional and experienced after sale service team to guarantee quick and satisfied installation,commissioning or service;
  7. Optimum materials and outsourcings to ensure the best performance;
  8. Commissioning and testing before delivery;
  9. Factory inspection is encouraged

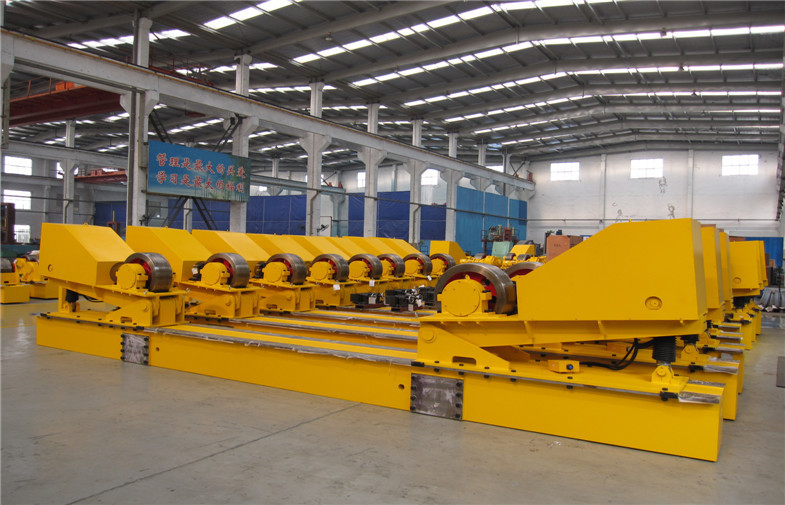

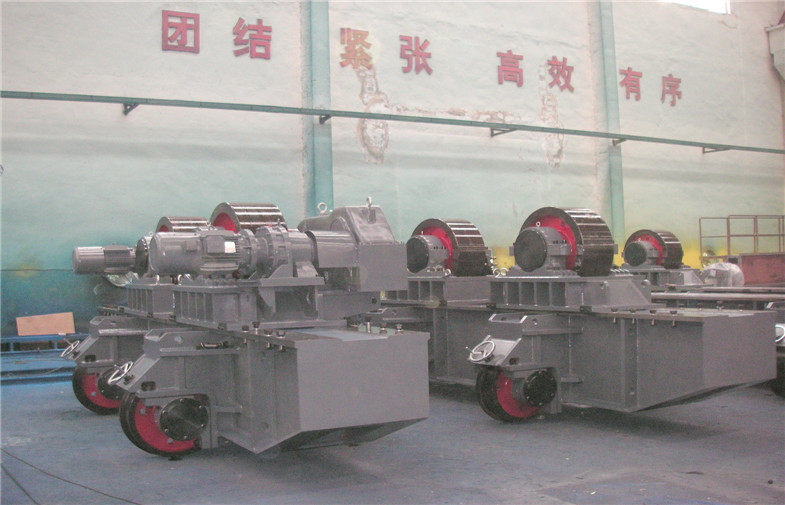

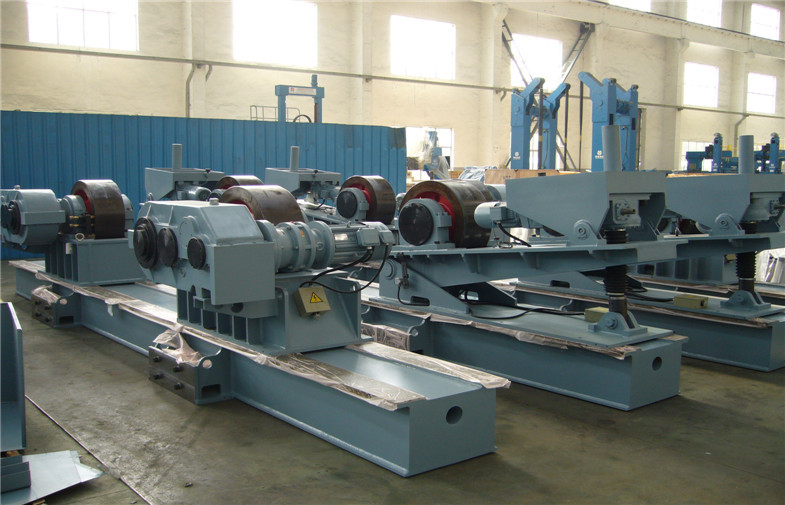

welding pipe rotator show:



Painting 200T Welding Positioner Rotator 1000mm-7000mm For Heavy Vessel 0
