Pressure Vessel 40T Welding Turning Rolls , 600-4200mm Idler Rotator
1set
MOQ
6200USD
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: weldsuccess
Certification: CE
Model Number: HGZ-40
High Light:

40T welding turning rolls

,

idler welding turning rolls

,

4200mm idler rotator

Payment & Shipping Terms

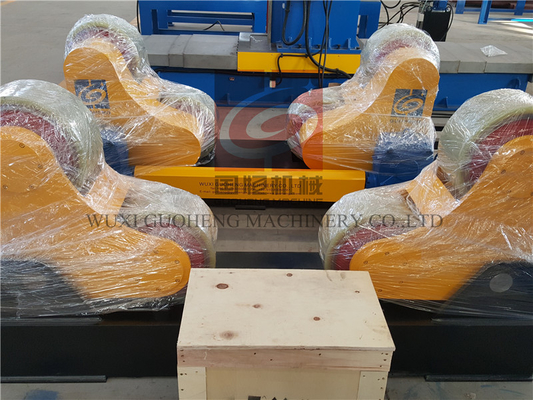

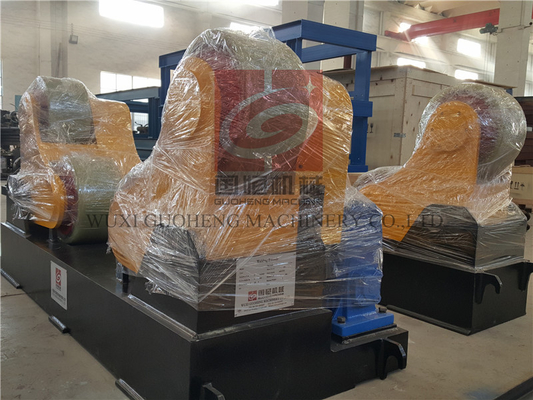

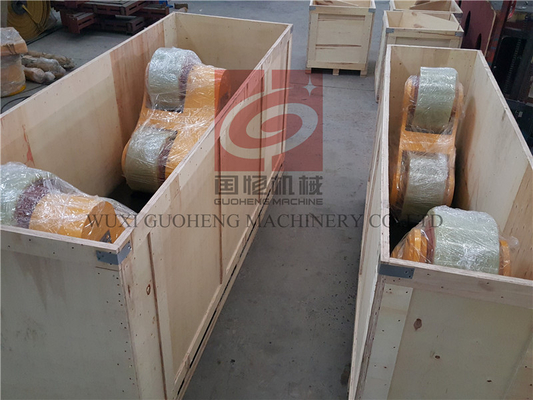

Packaging Details: Seaworthy Packing
Delivery Time: 15days
Supply Ability: 50sets/month
Specifications
Name: Self Aligning Welding Rotator
Roller Material: PU (high Temperature Resistant)
Max Load And Rotation Capacity: 40T
Suitable Pipe Dia.: 600--4200mm
Control Method: Wireless Type Remote Control Box
Application: Automatic Centering
Product Description

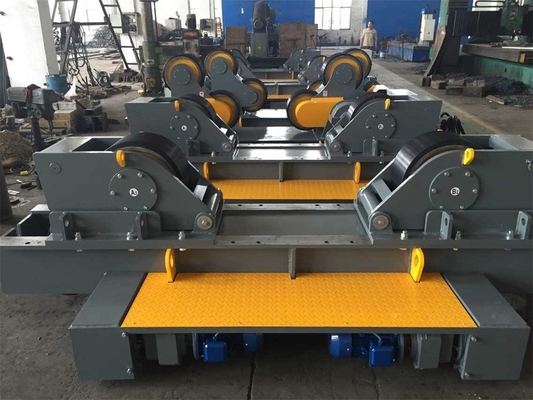

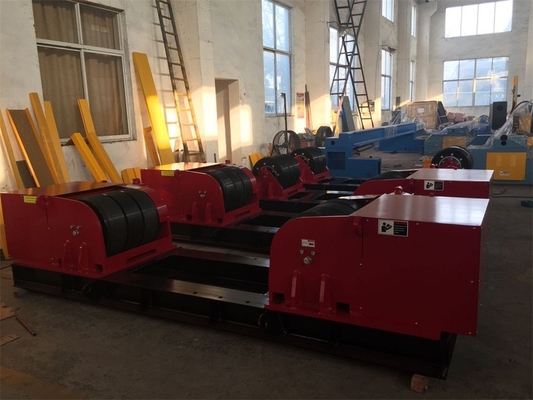

40T Self Aligning Rotators , Automatic Pipe Welding Center for Boiler and Pressure Vessel Maker



Description



Welding rotators are similar to positioners, in that it's a mechanical means to rotate cylindrical vessels.

They minimise handling, increase efficiency, and dramatically improve the quality of workmanship from welders of all skill levels





self-aligned welding rotator of Specifications





Model HGZ5 HGZ10 HGZ20 HGZ40 HGZ60 HGZ80 HGZ100 HGZ150 HGZ200
Max loading T 5 10 20 40 60 80 100 150 200
Suit diameter mm Min 250 320 500 600 750 850 1000 1200 1500
Max 2300 2800 3500 4200 5000 5500 6000 6500 8000
Rubber Roller mm Dia 250 300 350 400 450 500 500 550 550
Width 100 120 120 120 120 120 120 120 120
Metallic roller mm Dia 244 294 344 394 444 494 494 540 540
Width 20 25 30 40 50 60 80 100 100
Linear speed m/h 6--60
Speed Control VFD
Motor power kW 0.75 1.1 1.5 3 4 4.4 4.4 5.5 7.5
Roller distance mm 900 1100 1350 1600 1800
Above are our standard models and parameters, and it can be designed and manufactured on request.



 Main features



The standard models of our roller beds have the following features:

  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:





Optional features:

  • Roller material options: Metallic or PU roller;
  • Undercarriage/travel boogie;
  • Interface for integral control with welding column&boom;
  • Foot switch;
  • Servo drive;
  • Anti-explosion motor&control panel;
