6-60m/H 60ton Self Aligning Rotators With Rubber Wheel ISO9000
1set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: weldsuccess
Certification: CE,ISO9000
Model Number: HGZ series
High Light:

60ton Self Aligning Rotators

,

6m/h Self Aligning Rotators

,

ISO9000 self aligning welding rotator

Payment & Shipping Terms
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price Terms: FOB (Shanghai) or CIF (named port)
Specifications
Product Name: Self-Aligned Welding Rotator
Load Capacity: 60T
Roller Speed: 6-60m/h
Suit Diameter Mm: 750mm-5000mm
Motor Power KW: 4kw
Usage: Welding Rotator,Welding Assistant
Product Description

Self Aligning Rotators With Rubber Wheel , 60ton Tank Turning Rolls





Quick Detail



  • The self- align/adjusting rotator is suitable for circular pipe/tank/vessel welding;
  • The distance between wheels can be adjustable by it self.
  • Single motor drive system;
  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;

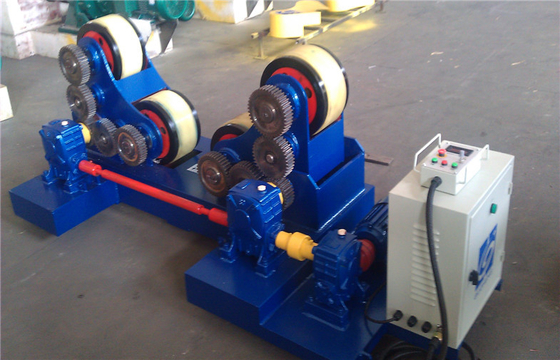

Self-Aligned Welding Rotator of Description



This series pipe welding rotators are self-alignment/self centering type.

Our welding roller beds designed for maximum workpiece loads is 60T are used for the rotation and positioning of heavy,

rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.

We also provide tailor-made pipe welding rotator according to your special requirements.



 Main Parameters



Model

HGZ60

Max loading T

60

Suit diameter mm

Min

750

Max

5000

Rubber Roller mm

Dia

450

Width

120

Metallic roller mm

Dia

444

Width

50

Linear speed m/h

6--60

Speed Control

VFD

Motor power kW

4

Roller distance mm

1800

Above are our standard models and parameters, and it can be designed and manufactured on request.

*We reserve the right to alter specifications without prior notice.




Self-Aligned Welding Rotators of  features



The standard models of our self-aligning rotators have the following features:

  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm
  • gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before
  • painting;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:



Optional features:



  • Roller material options: Metallic or PU roller;
  • Undercarriage/travel boogie;
  • Interface for integral control with welding column&boom;
  • Foot switch;
  • Servo drive;
  • Anti-explosion motor&control panel;
