Vessel 80 Ton Conventional Tank Rotators Roller Welding Double Drive CE
1set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: weldsuccess
Certification: CE, ISO9000
Model Number: HGZ series
OEM: Acceptable
High Light:

CE Tank Rotators

,

80Ton Tank Rotators

,

Vessel roller welding

Payment & Shipping Terms
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container;
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 20sets/month
Price Terms: FOB (Shanghai) or CIF (named port)
Specifications
Name: Conventional Tank Rollers
Weight: 80TON
Suit Diameter Mm: 2000-4500
Linear Speed M/h: 6-60
Speed Control: VFD
Usage: Welding Rotator , Further Machining
Product Description

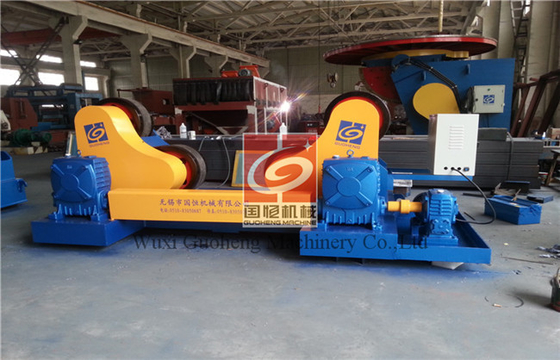

Vessel 80 Ton Conventional Welding Rotator with Double Drive







1. Quick Details



  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;



2. Introduction

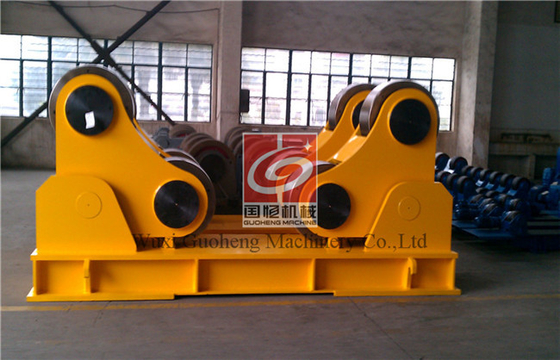

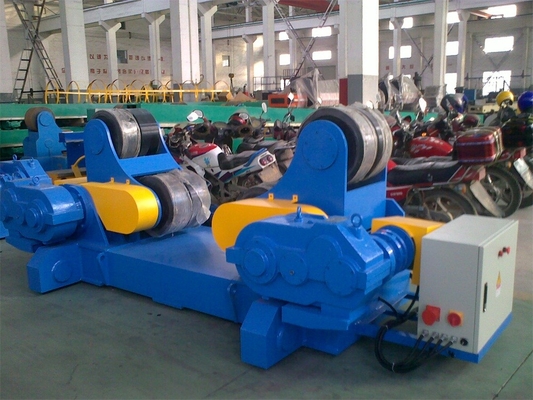

This series welding rotators are self-alignment/self centering type with PU wheel.

Our welding roller beds are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks,

pipes or boilers for further machining or welding.

We also provide tailor-made pipe welding rotator according to your special requirements.



3. Main Parameters



Model

HGZ80

Max loading T

80

Suit diameter mm

Min

2000

Max

4500

PU Roller mm

Dia

500

Width

200

Linear speed m/h

6--60

Speed Control

VFD

Motor power kW

2*2.2

Above are our standard models and parameters, and it can be designed and manufactured on request.

              *We reserve the right to alter specifications without prior notice.



4. Main features



The standard models of our roller beds or welding rotators have the following features:

  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:



Optional features:



  • Roller material options: Metallic or Rubber roller;
  • Undercarriage/travel boogie;
  • Interface for integral control with welding column&boom;
  • Foot switch;
  • Servo drive;
  • Anti-explosion motor&control panel;



5. Supply range



  • Driving welding rotator                                          1set
  • Idle welding rotator                                             1set
  • Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m]                      1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                             1set



6. Structure drawing



Vessel 80 Ton Conventional Tank Rotators Roller Welding Double Drive CE 0





. Comparative advantage



  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation,commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
