Tank Rotators for Wind Tower Welding , Automatic Pipe Welding Center for Windmill Manufacturer
1. Main features
The standard models of our roller beds have the following features:
2. Main Parameters
| Model | HGZ5 | HGZ10 | HGZ20 | HGZ40 | HGZ60 | HGZ80 | HGZ100 | HGZ150 | HGZ200 | |
| Max loading T | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 200 | |
| Suit diameter mm | Min | 250 | 320 | 500 | 600 | 750 | 850 | 1000 | 1200 | 1500 |
| Max | 2300 | 2800 | 3500 | 4200 | 5000 | 5500 | 6000 | 6500 | 8000 | |
| Rubber Roller mm | Dia | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 550 | 550 |
| Width | 100 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |
| Metallic roller mm | Dia | 244 | 294 | 344 | 394 | 444 | 494 | 494 | 540 | 540 |
| Width | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 100 | |
| Linear speed m/h | 6--60 | |||||||||
| Speed Control | VFD | |||||||||
| Motor power kW | 0.75 | 1.1 | 1.5 | 3 | 4 | 4.4 | 4.4 | 5.5 | 7.5 | |
| Above are our standard models and parameters, and it can be designed and manufactured on request. | ||||||||||

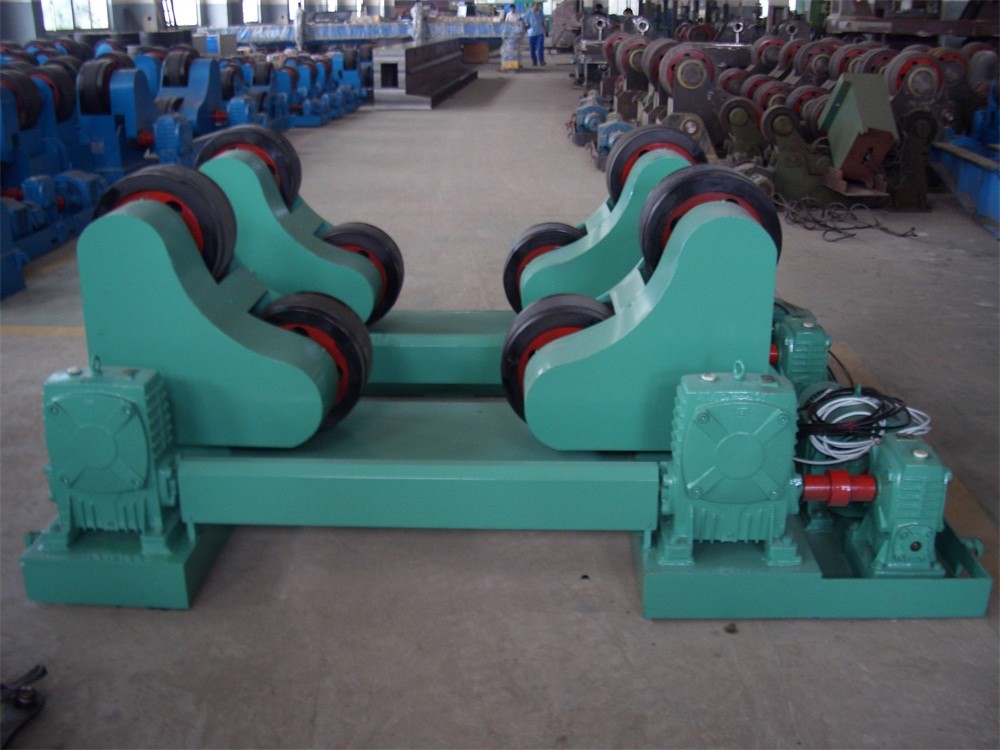

This series is self-alignment/self centering type. Our welding roller beds designed for maximum workpiece loads from 5T to 60T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding. We also provide tailor-made welding rotator according to your special requirements.
