Name: H Beam Welding Production Line
Product Description

3in1 H Beam Welding Machine Single Arc Twin Wire High Efficient Welding



Quick Details


  • Web height up to 1500mm, thickness up to 40mm; Suitable for light duty beam;
  • H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening;
  • Save space and economize workshop; shorten the production time and improve the efficiency;
  • Economize the investment of crane equipment and operator;

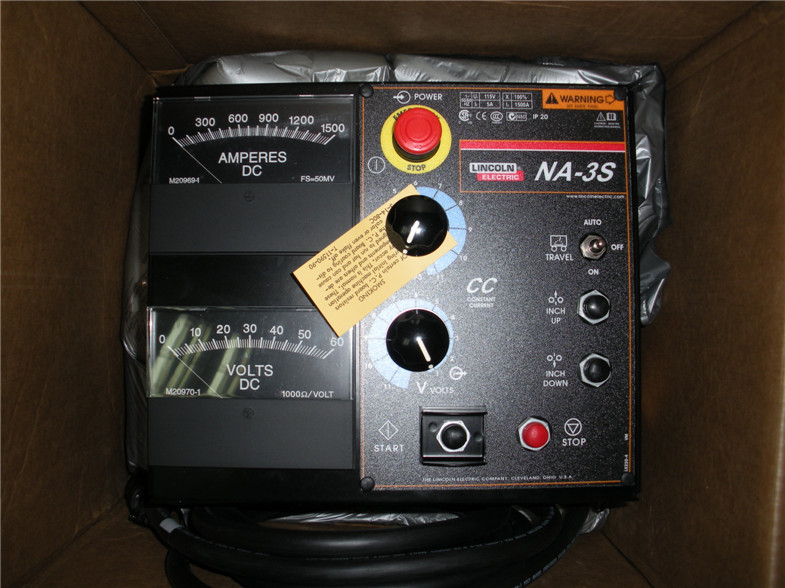

  • American Lincoln DC-1000,NA-3S single arc twin wire welding power;
  • Japan Mitsubishi PLC controller;


1. Introduction


H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening. It centralize the assembly, welding and straightening functions on one machine which saves space and economize workshop.Reduce workflows: shorten the production time and improve the efficiency. Economize the investment of crane equipment and operator.


2. Main Parameters




Suitable web height mm


Suitable web thickness mm


Suitable flange width mm


Suitable flange thickness mm


Straightening thickness mm


Fillet height mm


Work-piece length mm


Feeding speed m/min

0.2—2 (VFD)

Input conveyor m

3conveyorss, each 2.6m (one powered)

Output conveyor m

11.5m, including lift conveyor

Machine power kW


Power supply

AC380V, 50HZ, 3P or tailor made

Above are our standard models and parameters, and it can be designed and manufactured on request.

* We reserve the right to alter specifications without prior notice.


3. Main features


The standard models of our H-beam combination workstation for assembly, welding and straightening has the

following features:

  • Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;

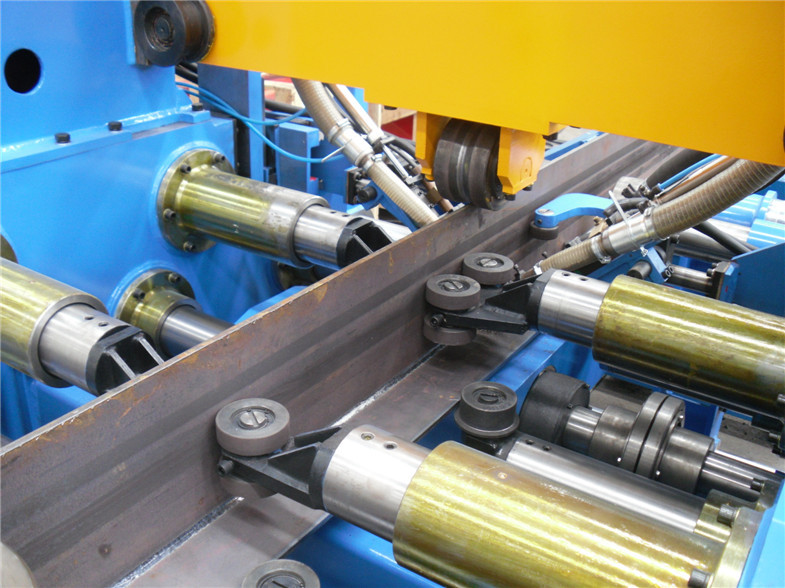

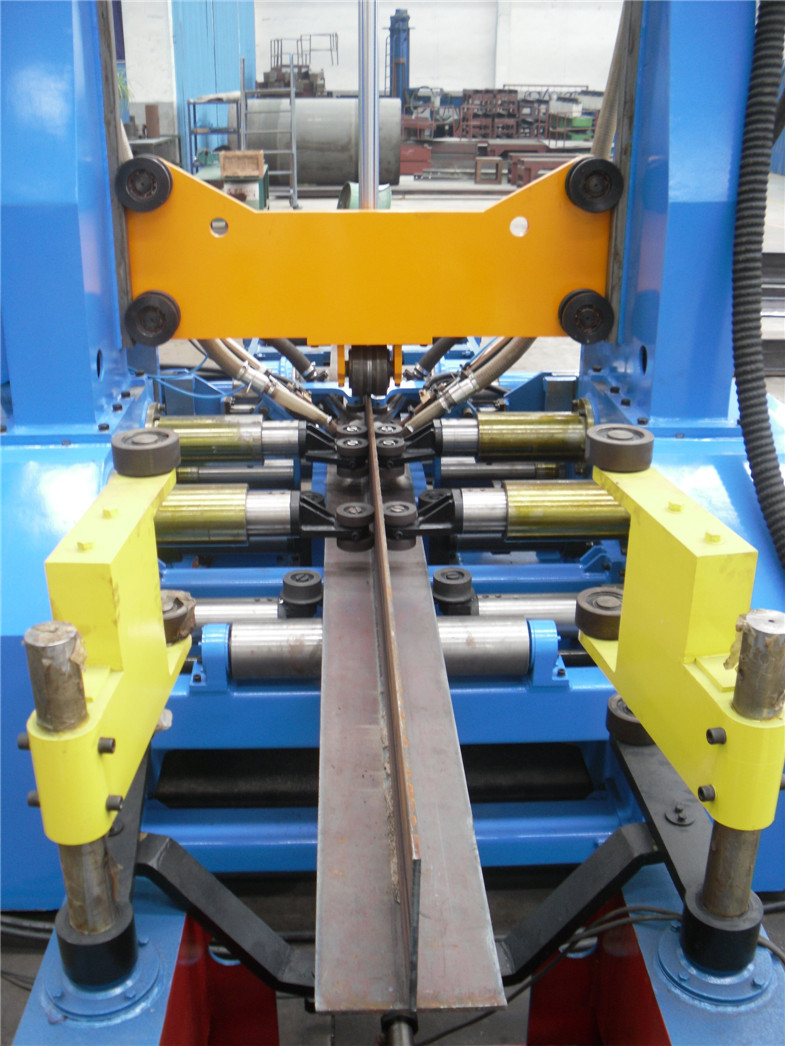

  • Synchronous clamping and centering system for web and flange;
  • Japan Mitsubishi PLC controller;
  • The whole system is using the PLC, and the speed of straightening, assembly and welding is the same;
  • American Lincoln DC-1000,NA-3S single arc twin wire welding power;
  • Flux feeding and recovery machine;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before
  • painting;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Lifting lug;
  • Standard color:


4. Reference photo

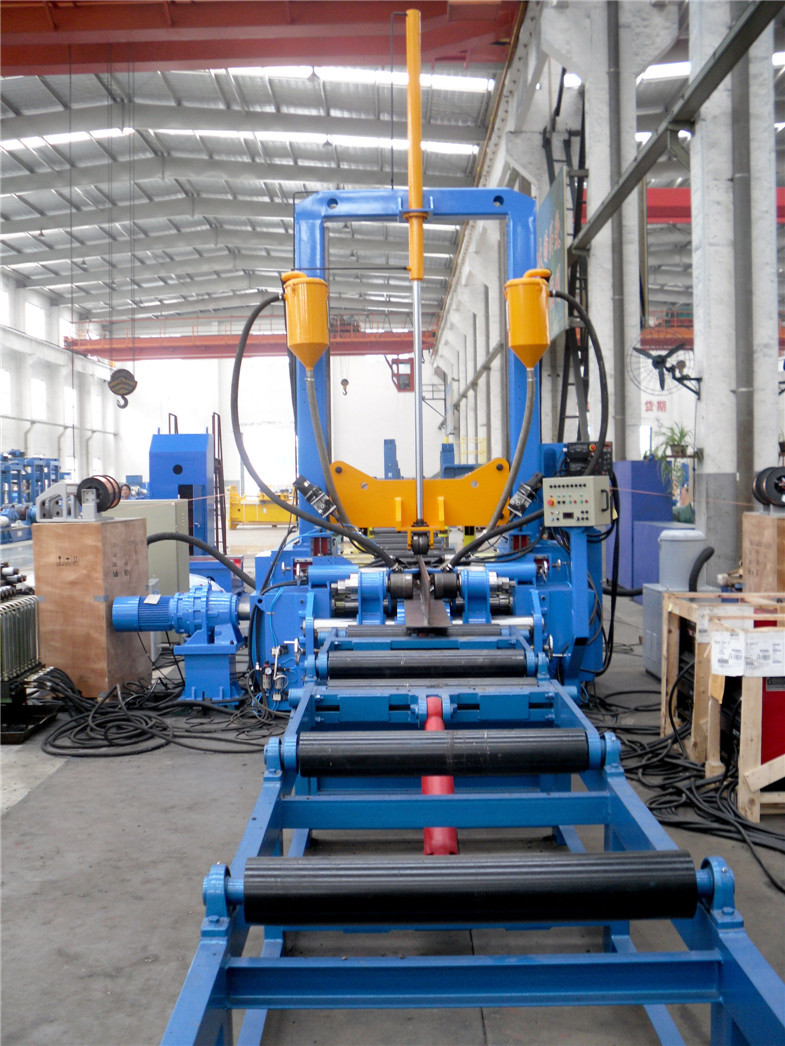

3in1 Beam Welding Line 0


3in1 Beam Welding Line 1


3in1 Beam Welding Line 2


3in1 Beam Welding Line 3


5. Comparative advantage


  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
