2*5.5KW 5T Self Aligning Welding Rotator Machine For Pressure Vessel
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: weldsuccess
Certification: CE
Model Number: HGZ20
High Light:

Self Aligning Welding Rotator


5T Welding Rotator


5.5KW pipe welding machine

Payment & Shipping Terms
Packaging Details: Seaworthy Packing
Delivery Time: 15days
Payment Terms: TT; LC
Supply Ability: 50sets/month
Name: Welding Rotator
Roller Material: Rubber Or PU Or Metal
Load Capacity: 5T
Suitable Work-piece: 500mm-3500mm
Motor Power: 2*5.5KW
Usage: Pipe Welding,welding/painting
Product Description

Self Aligning Pipe Welding Rotator Roller for Pressure Vessel



Quick Detail



  • 20T self - aligning rotator with PU rollers;
  • Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Quick connections joints, easy electric connections;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • All motion parts have lubrication system;




Item Parameters
Model HGZ20
Rated load (T) 20
Load when more than D3 (T) 20
Suitable work-piece d mm 500
D mm 3500
Roller Dia. and Width PU roller D1 350
W3 120
Metallic roller D2 344
W4 30
Linear speed (m/h) 6-60
Way of speed control VFD
Motor power (kW) 1.5
Roller distance (mm) A 1350
Power supply 440V 60HZ 3P
2. Introduction

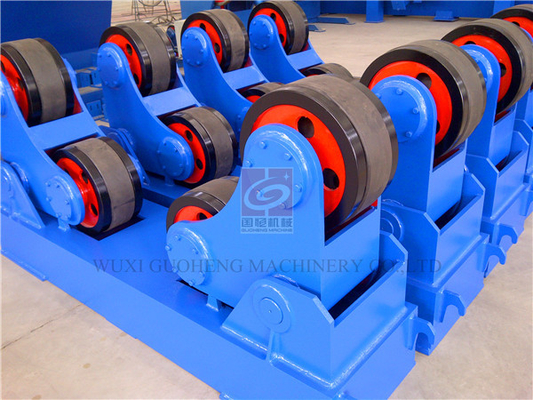

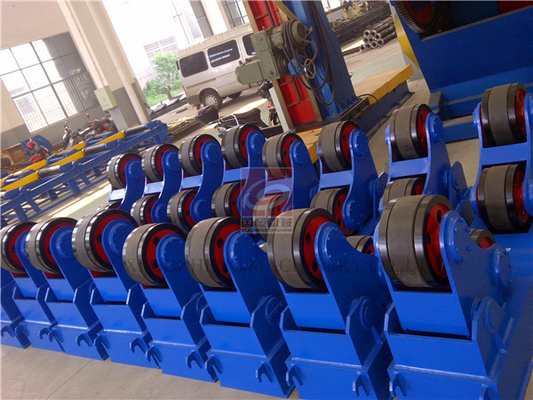

The series turning rolls are a unique self-aligning roller. When loading your work piece into the rolls, four self-aligning

wheels automatically move into the position that provides the best support for the work piece. The self-aligning rollers

which maintain a constant centerline, can rotate work pieces with diameters as small as 600mm up to 4200mm and weights

ranging from 5 ton 200 metric tons.


The PU/rubber-tired rollers use a steel support ring in combination with the rubber to support the load. This design protects

the PU/rubber from overloading and decreases the overall roller width.


Powering this unit is adjustable frequency AC Drive and one (1) inverter duty AC motor.
