CNC Flame / Plasma Pipe Profiling Cutting Machine , High Accuracy Pipe Cutting

Quick Details

• Used for tube and pipe profile cutting and intersection cutting;
• Can be equipped with oxy-fuel or plasma torches;
• Suitable pipe diameter: 60-300mm, thickness up to 50mm;
• Five-axis controlled and four interlocking;

1. Introduction

Our wide range of tube and pipe cutting machines includes machines that can handle small or large diameter tubes and that can be equipped with oxy-fuel or plasma torches. We also provide user-friendly broad choices and options that allow you to configure your CNC cutting system with the capacities, speed and accuracy of your needs.

We also provide user-friendly broad choices and options that allow you to configure your CNC cutting system with the capacities, speed and accuracy of your needs.

2. Main features

Our CNC-PC300 type CNC pipe cutting machine combines a chuck type system for high accuracy together with a roller bed for high productivity. Pipes are moved into the cutting bed after which sets of wheels push up the pipe. Then the chuck moves into position and clamps the pipe for accurate rotation during cutting.

• Suitable for cutting the branches of pipe and two or three-layer saddle cutting of main pipe;
• Suitable pipe diameter 60—300mm, or customized;
• Suitable pipe thickness: flame: 6—50mm; plasma: 3—20mm;
• Bevel angle: flame: ±60°; plasma: ±45°;
• Cutting method: oxy-fuel or plasma;
• Five-axis controlled and four interlocking;
• CNC system: INMS, full automatic programming and technology guiding;

3. Plasma power source

Please select the suitable Hypertherm plasma system (made in USA) according to the following introduction.

1) Hypertherm Plasma Capacity Chart

2) Air Plasma: PowerMax

3) LongLife Air and Oxygen Plasma: Maxpro200

4) HyPerformance Plasma: HPR*XD

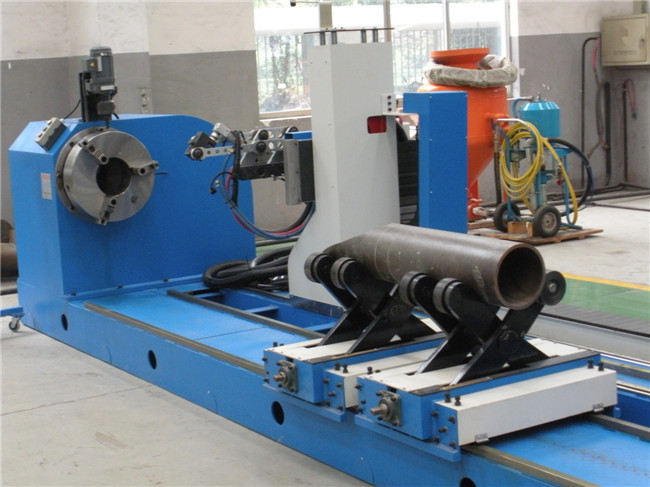

4. Reference photo

5. Comparative advantage

• ISO9000&CE certified;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;
