Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table

China Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table supplier
Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table supplier Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table supplier Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table supplier Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table supplier

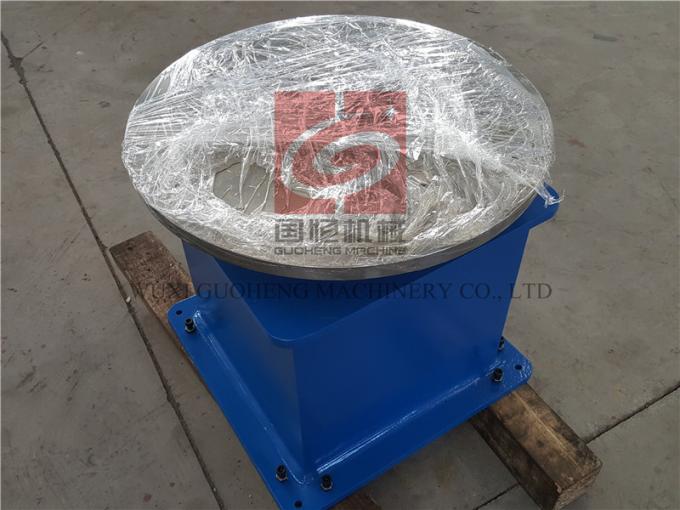

Large Image :  Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table

Product Details:

Place of Origin: CHINA
Brand Name: GUOHENG
Certification: CE
Model Number: R-TT-05

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Seaworthy Package
Delivery Time: within 25days upon down payment
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Rated Load: 50KG Servo Motor Make: Japan Panasonic
Application: Robotic Welding Accuracy: ≤1arc Min
Rotation Angle: 0-360degree Rotation Speed: 0.1-3rpm

Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table



Outline:



  • The R-series of 1-station positioners features a vertical rotation axis and can be used as a basic modular drive for multiple station operation or as a complete module with a mounted face plate.
  • The precise servo technology provides high repeat accuracy and a high processing time due to a very quick positioning.

Main Parameters:



  • Model: R-TT-05
  • Rated Load: 50KG;
  • Servo Motor Drive: Japan Panasonic;
  • Accuracy: ≤1arc min
  • Rotation Angle: 0-360degree;
  • Rotation Speed: 0.1-3rpm;
  • Worktable diameter: 300mm;
  • Protection: IP65

Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table



Benefits:

  • Customers can consider robotic welding of more complex assemblies.
  • The robot can address the joint in a favourable weld position, which means higher quality and weld integrity.
  • A robot positioner can extend the working envelope of the robot by bringing the joint to the robot. Orbital welds can be addressed in a single operation by rotating the work piece resulting in improved bead appearance and higher weld integrity.
  • Fast positioning times reduces the overall welding cycle time, thus increasing productivity.
  • Easy to program using the robot's teach pendant, which means faster programming and more time to produce parts.
  • High repeatable accuracy resulting in high quality output.

Robotic Turntable, Robotic Welding Positioner, Single Axis Turn Table



This robotic welding turntable is special designed according to client's job and requirements. It is customized and can be OEM. It can be integrated with the robot arm, and also can work as the separate axis.



Keywords:

Welding turntable, welding positioner, roboic welding turn table, perapheral equipment for robotic arm;
