Bridge Panel Automatic Welding Line , U Rib Assembling Machine , U Rib Automatic Welding Machine

Quick Details

• The equipment mainly used for the U-rib assembly of Bridge-face plate;
• Two sets of A.C. motors via reducers drive the gantry frame traveling on the rail;
• 5sets of assembly head;

1. Introduction

With the increasingly development of big steel structure bridge project, importance on automatic manufacturing of U-rib is growing day by day because of the large demand and high requirements about productivity and welding quality. Our company provides various bridge face manufacturing equipments for domestic state-owned companies as Shanghai ZMPC, Jiangnan Shipping Co and other bridge steel structure manufacturers in China. We have gained favorable comments from our customers.

2. Main Application and Suitable Range

• The equipment mainly used for the U-rib assembly of Bridge-face plate. The work-piece will be placed on the assembly worktable, the U-rib plates are preliminary positioned by manual line marking, and then pressed the U-rib plates tightly by oil cylinder for spot welding.
• Suitable range:

      Faceplate width: 4000mm;
      Distance between U-ribs: 500—800mm;
      Work-piece length: 15000mm;

3. Main Specifications and Parameters

• Rail span: 5000mm;
• Quantity of assembly head: 5sets;
• Lift stroke of assembly head: 200mm;
• Gantry moving speed: 5m/min;
• Power of gantry: 2.2kW;
• Pressure of hydraulic system:9MPa;
• Max pressure of single cylinder: 1.5T;

4. Detail Descriptions

• Gantry is the frame of machine,the other parts are installed on the gantry frame. The functions of gantry frame are mainly for supporting the related parts and taking the parts travel with the welding speed. The downside of gantry frame has two traveling beam. Two sets of A.C. motors via reducers drive the gantry frame traveling on the rail. Two couples of wheels are lean against the rail side, which keeps steady traveling. Both sides of traveling end beam are equipped with track hold device, which ensure the machine cannot deviate from rail because of too big pressure during the work-piece clamping process. The hydraulic pump station and power distributor box and so on, are putted on the platform of gantry frame, which move together with the machine.
• Under the carriages, it is equipped with staff gauge, which can directly show the distance between five assembly heads, and convenient to suit for the different space between U-ribs and the width of panel.
• Electric control system consists of one electric control box and six operation boxes. The electric control box is installed on the gantry frame, one of the operation boxes is fixed on the front column of gantry frame, and the other five operation boxes are fixed on the assembly head device. All the motions can be realized by the controls of operation box.

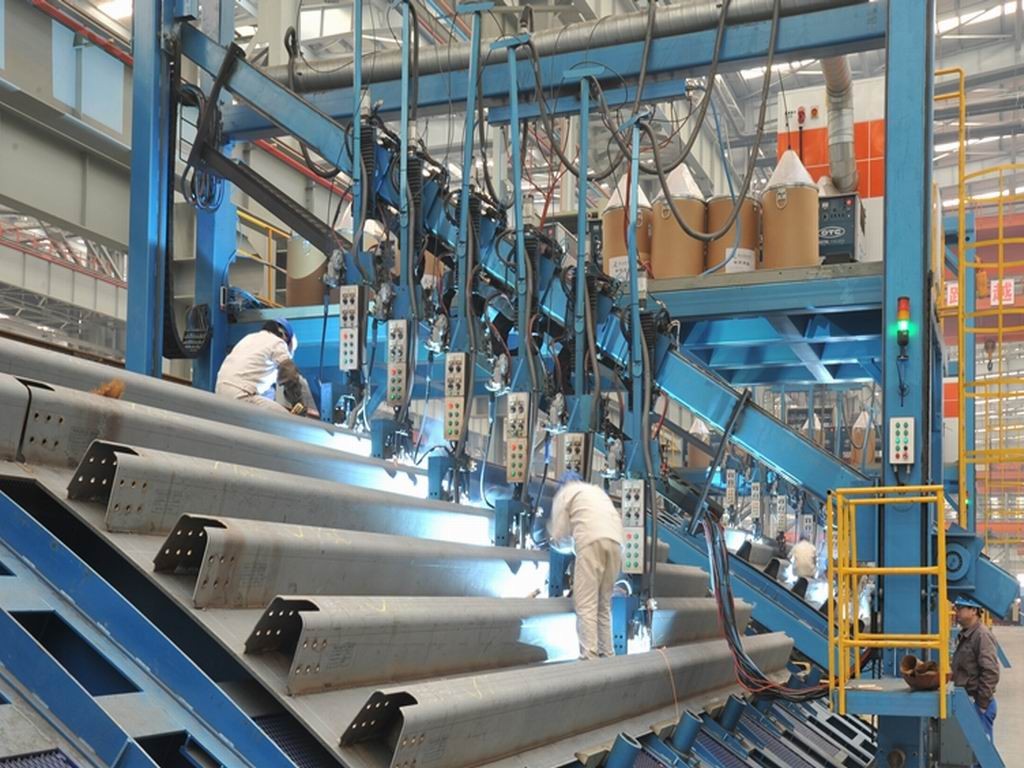

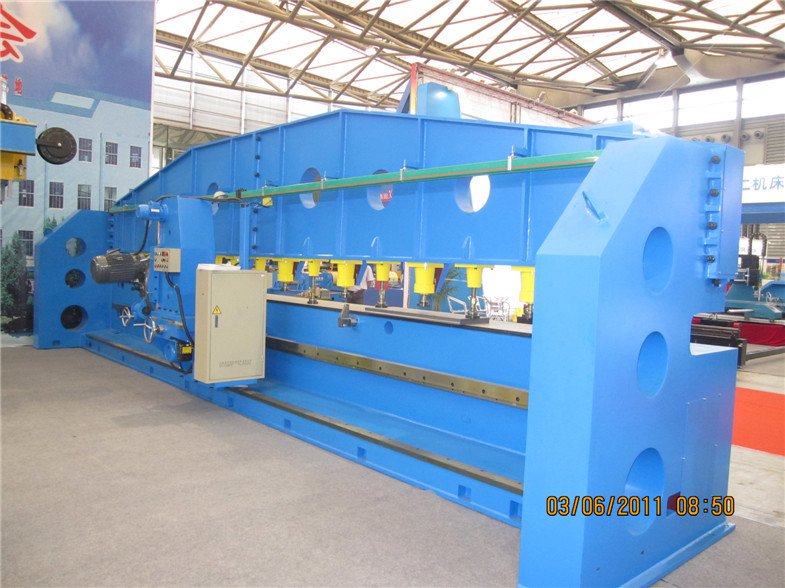

5. Reference photo

6. Comparative advantage

• ISO9000&CE certified;
• International warranty;
• Punctual delivery;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;
