Hydraulic type H Beam Welding Machine YTJ-80C for Steel Structure with ISO9000&CE Certified

China Hydraulic type H Beam Welding Machine YTJ-80C for Steel Structure with ISO9000&CE Certified supplier

Large Image :  Hydraulic type H Beam Welding Machine YTJ-80C for Steel Structure with ISO9000&CE Certified

Product Details:

Place of Origin: CHINA
Brand Name: GUOHENG
Certification: CE
Model Number: YTJ-80C

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Seaworthy Packages
Delivery Time: within 30days
Supply Ability: 2sets/month
Detailed Product Description
Name: H Beam Flange Straightening Machine Model: YTJ-80C
Applicable Industries: Steel Structure, Metal Fabrication, Heavy Duty Industries, Etc Suitable Web Height: ≧500
Max Straightening Thickness: 80mm (Q345) Suitable Flange Width: 300--1000mm

Quick Details



  • Hydraulic type straightening machine with capacity up to 80mm;
  • All the straightening rollers are made of quality alloy steel (35CrMo), gone through advanced heat-treatment;
  • Input and output 11m elevation type powered conveyor each;
  • Machine weight up to 31T;



1. Introduction



It is special used for straightening the deformation of welded H-beam, which is divided into Mechanical type and Hydraulic type. Hydraulic type has larger straightening capacity and high degree of automation, suitable for flange thickness more than 40mm. Straightening rollers and main transmission roller adopt quality alloy steel, which are processed with heat treatment for a long life.



2. Main Parameters



Type Hydraulic type
Model YTJ-40 YTJ-60 YTJ-80
Flange thickness mm ≦40 ≦60 ≦80
Flange tensile strength Mpa 600 600 600
Flange width mm 200—800 200—800 300—1000
Straightening speed mm/min 6 6.5 6
Machine power kW 13.2 41.4 44
Size of web height mm ≧380 ≧350 ≧500
Power supply AC380V, 50HZ, 3P or tailor made
Above are our standard models and parameters, and it can be designed and manufactured on request.
*We reserve the right to alter specifications without prior notice.



3. Main features



The standard models of our hydraulic type H-beam flange straightening machine have the following features:

  • Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
  • All the straightening rollers are made of quality alloy steel (35CrMo), gone through advanced heat-treatment;
  • Input and output 11m elevation type powered conveyor each;
  • Near operation box for easy operation;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Lifting lug;
  • Standard color:

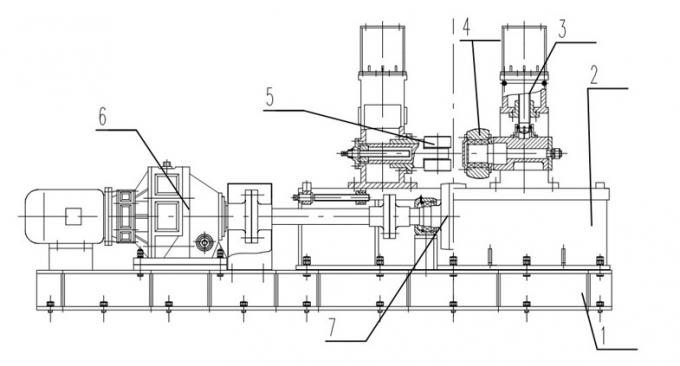

4. Structure drawing

50HZ 3P Hydraulic H-beam Production Line , H Beam Flange Straightening Machine



5. Reference photo



Hydraulic type H Beam Welding Machine YTJ-80C for Steel Structure with ISO9000&CE Certified



Hydraulic type H Beam Welding Machine YTJ-80C for Steel Structure with ISO9000&CE Certified





6. Comparative advantage



  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
