Detailed Product Description

H-beam Production Line Integral Automatic Lincoln DC-1000 , NA - 3S , Hydraulic Straightening Unit







Quick Details



  • “Beam Welding Line” automatic, two heads submerged arc-welding lines for T / I girder beam.
  • 2sets of American Lincon DC-1000, NA-3S SAW welding system to ensure good welding quality;
  • Japan Mitsubishi PLC controller;
  • Hydraulic type post deformation device to straighten the beam;
  • The beam is fed into the machine and both sides of the beam are welded simultaneously.
  • Save space and economize workshop; shorten the production time and improve the efficiency;
  • Economize the investment of crane equipment and operator;





1. Main Parameters



Model ZHJ18
Suitable web height mm 200—1800
Suitable web thickness mm 6—32
Suitable flange width mm 200—800
Suitable flange thickness mm 6—40
Straightening thickness mm 6—35
Fillet height mm ≦8
Work-piece length mm 4000—15000
Feeding speed m/min 0.2—2 (VFD)
Input conveyor m 3conveyorss, each 2.6m (one powered)
Output conveyor m 11.5m, including lift conveyor
Machine power kW 18.1
Power supply AC380V, 50HZ, 3P or tailor made
Above are our standard models and parameters, and it can be designed and manufactured on request.

    *We reserve the right to alter specifications without prior notice.





2. Introduction



H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening. It centralize the assembly, welding and straightening functions on one machine which saves space and economize workshop.Reduce workflows: shorten the production time and improve the efficiency. Economize the investment of crane equipment and operator.



  • These machines are specifically designed for the manufacture of welded “T” and double “T” girder-beams with parallel or converging flange.
  • They enable the welding to be carried out on items with the web located vertically and without any need for tacking.
  • Tacking will only be required at the top in order to obtain the proper angle between the web and the flange.
  • When double “T” beams are being manufactured, once the first flange has been welded, the beam is flipped over and fed back into the unit once again.
  • This machine is capable of welding both symmetrical and non-symmetrical beams without the need for tacking;
  • A flange post-deformation device mounted at the machine exit enables the machine to compensate for any flange deformation resulting from the welding process.
  • This device is easily adjustable to handle various flange dimensions and a variety of different deformable thicknesses up to a maximum of 40 mm at maximum width.
  • The welding line can be equipped with a control PLC from Mitsubishi.

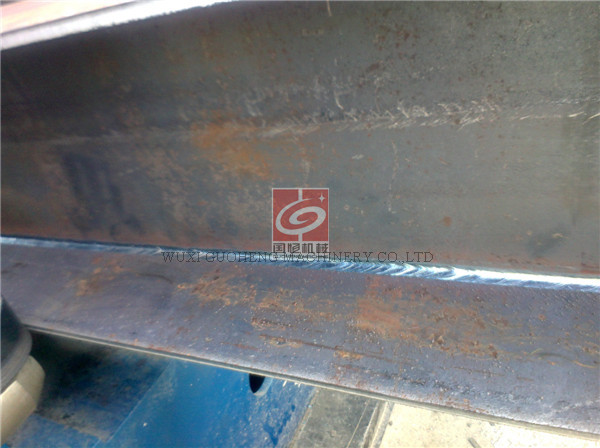

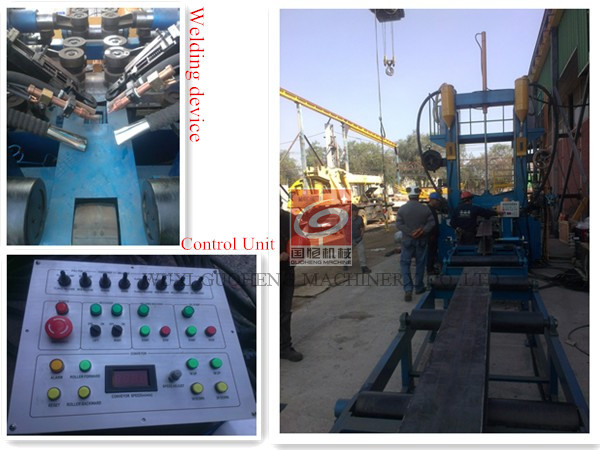

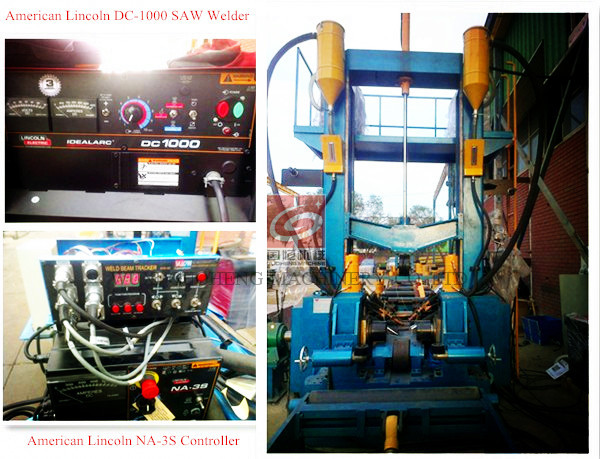

3. Reference Photos



H-beam Production Line Integral Automatic Lincoln DC-1000 , NA - 3S , Hydraulic Straightening Unit



H-beam Production Line Integral Automatic Lincoln DC-1000 , NA - 3S , Hydraulic Straightening Unit



H-beam Production Line Integral Automatic Lincoln DC-1000 , NA - 3S , Hydraulic Straightening Unit







4. Comparative advantage



  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;





Tag: Beam welding line , Beam integral welding line , Steel structure production line
