Adjustable Tank Rotators

China Adjustable Tank Rotators supplier
Adjustable Tank Rotators supplier Adjustable Tank Rotators supplier Adjustable Tank Rotators supplier

Large Image :  Adjustable Tank Rotators

Product Details:

Place of Origin: China
Brand Name: Guoheng
Certification: CE, ISO9000
Model Number: HGK
OEM: Acceptable

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 20sets/month
Price terms: FOB (Shanghai) or CIF (named port)
Contact Now
Detailed Product Description
High Light:

pipe welding rotators

,

pipe rollers for welding

 Adjustable Tank Rotators



Quick Details



  • Metallic rollers with groove to support fake flange;
  • With travel boogie, very convenient to transfer the material;
  • Roller distance is bolt adjustable and roller surrounding angle among 45°~110°;
  • Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard;



1. Introduction



This is special roller beds or pipe welding rotator for tank/pipe painting processes. While, it also can be considered as common turning rolls in your production. We only have 60T&100T as our standard roller beds.

If you have special requirements, please contact us.



2. Main Parameters



Model

HGK60PQ

HGK100PQ

Max loading T

60

100

Suit diameter mm

Min

1000

2000

Max

4000

4500

Metallic Roller mm

Dia

450

550

Width

260

260

Groove width*depth mm

50*30

50*30

Linear speed mm/min

100—1000

Way of speed control

VFD

Boogie travel speed mm/min

300—3000

Roller motor power kW

2*1.5

2*2.2

Boogie motor power kW

2*0.75

2*1.1

Inner rail span mm

1930

2000

Above are our standard models and parameters, and it can be designed and manufactured on request.

              *We reserve the right to alter specifications without prior notice.



3. Main features



The standard models of our pipe welding rotators or roller beds have the following features:

  • This special turning rolls consist of one driving bolt adjustable turning roll, one idle bolt adjustable turning roll and electric control system, etc;
  • All the connectors are designed with safety protections and improved airproof performance to ensure the machine can work in severe surroundings;
  • There is metallic wheel groove in the middle of roller which is used for supporting the fake flange during painting;
  • Steplessly controllable rotary drives by means of A.C. anti-explosion motor drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • With travel boogie, very convenient to transfer the material;
  • Metallic wheels;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Fine machining to upper surface of base;
  • Roller distance is bolt adjustable and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:



Optional features:



  • Foot switch;
  • Servo drive;



4. Supply range



  • Driving turning roll                                                1set
  • Idle turning roll                                                   1set
  • Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m]                                   1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                                         1set

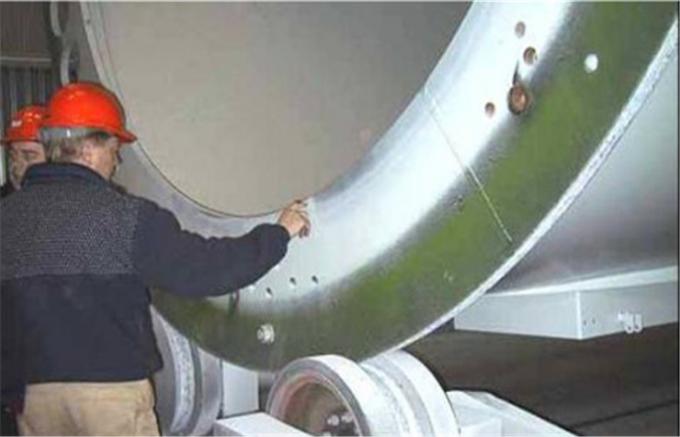

5. Reference photo



Adjustable Tank Rotators



6. Comparative advantage



  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
