Medium Duty Motorized Welding Manipulator , 120KG Industrial Welding Equipment
1set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: weldsuccess
Certification: CE, ISO9000
Model Number: LHZ series
OEM: Acceptable
High Light:

Motorized welding manipulator

,

Industrial welding manipulator

,

120KG industrial welding equipment

Payment & Shipping Terms
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 30days
Payment Terms: TT/LC
Supply Ability: 10sets/month
Price terms: FOB (Shanghai) or CIF (named port)
Specifications
Product Description

Medium Duty Motorized Welding Manipulator for Wind Tower Production





Quick Details



  • Medium duty type with boom end load up to 120KG;
  • There three type of structures: fixed, fixed with rotation, and movable with rotation;
  • Motorized cross slider 100*100mm fine adjustment stroke to welding gun;
  • ±180° degree column rotation with manual locking at any position;
  • Column and Boom Manipulators can realize automatic welding incorporate with SAW, MAG and TIG welding systems;
  • Extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower, piping system and others lines





1. Introduction



Welding column&Boom Manipulators of Guoheng stands out not only for innovation in design and quality of manufacture, but also for reliability and robustness. It can realize automatic welding incorporate with SAW, MAG and TIG welding systems, and extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower, piping system and others lines.

According to boom end load capacity, it is divided into light duty (LHQ), medium duty (LHZ), heavy duty (LHW) and ultra heavy duty (HCJ).

Below are the main parameters of our medium duty welding column&boom manipulator. We also provide tailor-made welding column&boom manipulators according to your special requirements.



2. Main Parameters



Model

LHZ4*4

LHZ5*5

Column stroke mm

4000

5000

Boom stroke mm

4000

5000

Boom lift speed mm/min

1000

Boom travel speed mm/min

120—1200 (VFD)

Max boom end load KG

120

Boom travel transmission

Gear and rack couple

Boom lift transmission

Chain and sprocket couple

Motorized slider unit mm

UP and DOWN range

100

LEFT and RIGHT range

100

Min distance between boom lower surface and rail surface

1110 (moving and rotation)

950 (stationary and rotation)

Column rotation

Angle

±180°

Speed

0.36rpm or by manual

Boogie travel speed mm/min

1700

Boogie inner rail span mm

1730

Power supply

380V 50HZ 3P or tailor made

Above are our standard models and parameters, and it can be designed and manufactured on request.


  * We reserve the right to alter specifications without prior notice.



3. Main features



The standard models of our welding column&boom manipulators have the following features:

  • Robust all steel fabrication;
  • ±180° degree column rotation with manual locking at any position;
  • Variable speed boom controlled by inverter;
  • Boom elevation through geared motor rack and pinion drive with brake;
  • Elevation and traverse drive mounted on saddle providing for easy access servicing and maintenance;
  • Machines fully counter balanced by column internal weight, connected to the saddle by heavy duty chain;
  • Anti-fall device offers safety feature;
  • Extra wide rollers and unique slideways ensure minimum deflection traversing;
  • Innovative machined “rectangle” ways to column ensure that the boom saddle moves smoothly with no vibration. This reduces wear and tear.
  • Motorized cross slider unit to ease the welding head adjustment;
  • There is safe ladder behind the column for maintenance of equipment;
  • Limit switch for both boom travel and lift;
  • Sand blasting treatment to main welding parts before painting;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant;
  • Lifting lug on top of column;
  • Standard color:



Optional features:



  • Welding system: American Lincoln DC-1000, NA-3S or Chinese brand or on request;
  • Flux feeding and recovery system;
  • Interface for integral control with welding roller beds or welding positioners to form automatic welding center;



4. Supply range



  • Welding column&boom manipulator                                  1set
  • Electric control system (including 1piece of electric control cabinet, 1piece of remote control box with cable 12m)                               1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                                      1set

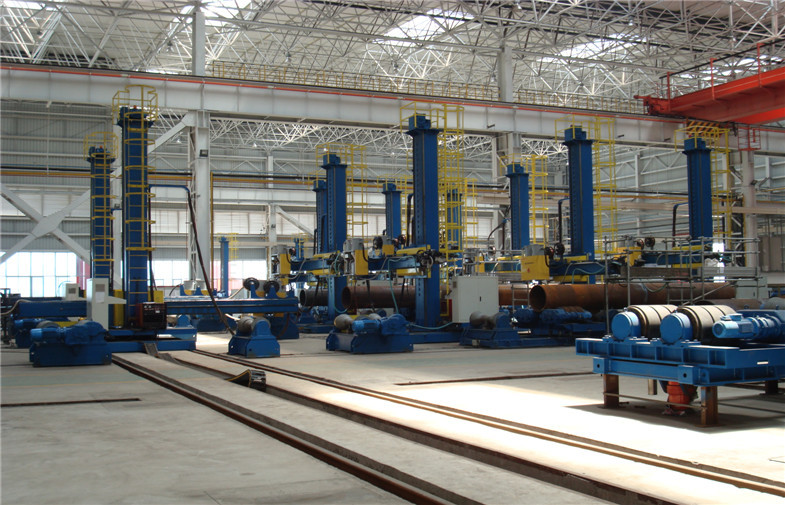

5. Reference drawing



Medium Duty Motorized Welding Manipulator , 120KG Industrial Welding Equipment 0

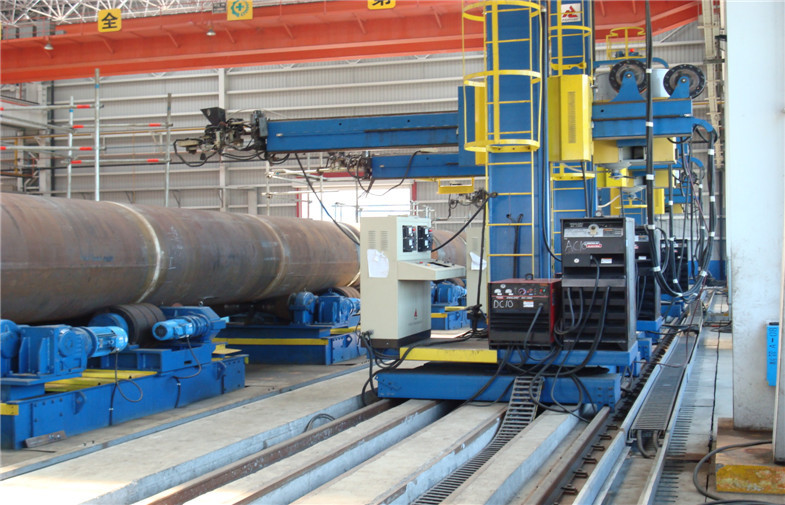

6. Reference photo



Medium Duty Motorized Welding Manipulator , 120KG Industrial Welding Equipment 1



7. Comparative advantage



  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
