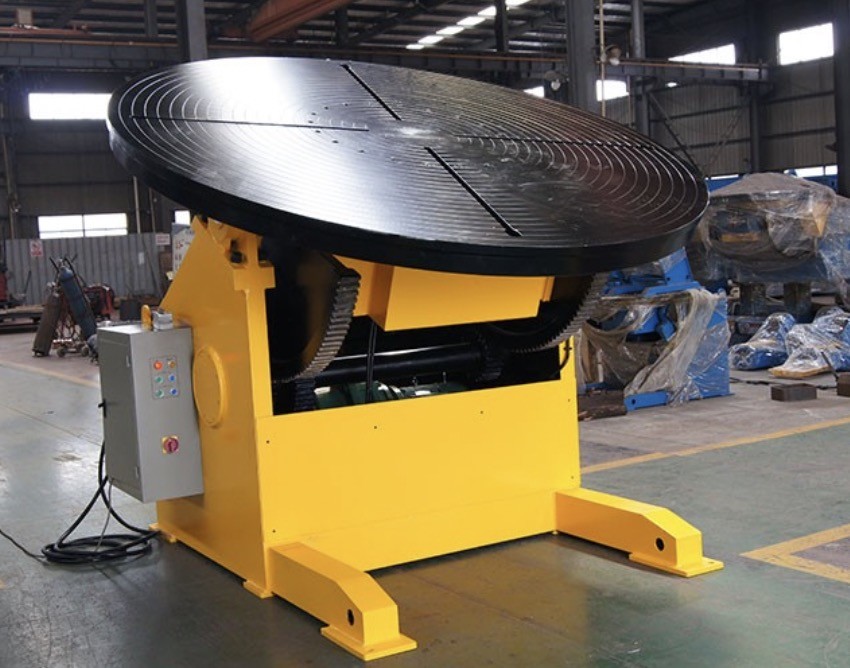

Automatic 20 Ton 5.5KW Tilting Rotary Welding Positioners HB200
1set
MOQ
negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: weldsuccess
Certification: CE
Model Number: HB200
High Light:

5.5KW Rotary Welding Positioners

,

20 Ton Rotary Welding Positioners

,

HB200 automatic welding positioner

Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 25days
Specifications
Product Name: High Precision Rotary Tig Welding Positioner Machine
Max Loading: 20,000KG
Rated Eccentricity: 200mm
Rated Center Of Gravity: 630mm
Worktable Diameter: 2500mm
Tilt Angle: 0°~120°
Rotation Speed: 0.05—0.5rpm
Tilt Speed: 0.14rpm
Rotation Motor Power: 5.5KW
Tilt Motor Power: 7.5KW
Usage: Welding And Cutting Auxiliary Equipment
Product Description

Automatic Tilting Welding Rotary Positioner Heavy Duty 20 Ton





. Introduction



Conventional rotary welding positioners are designed for maximum loads of 5,000KG to 20,000KG have universal applications in the manual and automatic welding of circumferential seams and in the accurate positioning of work-pieces, and extensively applied in pressure vessel, metallurgy, power, chemical industry, metal structure and others lines.

We also provide tailor-made rotary welding positioners according to your special requirements.



 Main Parameters



Model

HB200

Max loading KGs

20,000

Rated eccentricity mm

200

Rated center of gravity mm

630

Worktable diameter mm

Φ2500

Tilt angle

0°~120°

Rotation speed rpm

0.05—0.5

Tilt speed rpm

0.14

Rotation motor power KW

5.5

Tilt motor power KW

7.5

Max rotation diameter of work-piece in 90° mm

3400

Earthing Amperes A

1000

Main frame length mm

3500

Main frame height mm

2190

Main frame width mm

2500

Power supply

380V 50HZ 3P or tailor made

Above are our standard models and parameters, and it can be designed and manufactured on request.





Conventional rotary welding positioners features



The standard models of our conventional rotary welding positioners have the following features:

  • Free standing, robust all steel fabrication;
  • Variable speed table rotation controlled by inverter;
  • Motor with brake;
  • Fully machined turntable of various sizes with centering grooves and T-slots;
  • Sand blasting treatment to main welding parts before painting;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward&Reverse Rotation, Tilt UP&DOWN, and speed potentiometer are standard;
  • Efficient built-in earthing;
  • Lifting lug on the base of roller bed;
  • Standard color:
