Table Top 100KG Conventional Hydraulic Welding Positioner 400W For Robot
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: weldsuccess
Certification: CE
Model Number: HB1
High Light:

table top hydraulic welding positioner


100KG hydraulic welding positioner


400W table top welding positioner

Payment & Shipping Terms
Packaging Details: Plywood box
Delivery Time: 10-15 working days
Supply Ability: 30sets/month
Name: Welding Turn Table/welding Rotary Table /welding Positioner
Rated Load: 100KG
Tilt Angle: 0°—120°
Servo Motor Power: 400W
Worktable Diameter: ¢400mm
Rotation Speed: 20rpm
Tilt Accuracy: ±0.5º
Usage: Welding Positioning
Product Description

100KG Conventional Welding Rotator 400W Servo Motor for Robot



Quick Details


  • Conventional rotary welding positioners have universal applications in the manual and automatic welding of circumferential seams and in the accurate positioning of work-pieces;
  • Free standing, robust all steel fabrication;
  • Fully machined turntable of various sizes with centering grooves and T-slots;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward&Reverse Rotation, Tilt UP&DOWN, and speed potentiometer are standard;


1. Introduction


This 100KG conventional rotary welding positioners is designed for robot system. In order to ensure the rotation and tilting accuracy, it uses 400W SIEMENS servo motor.

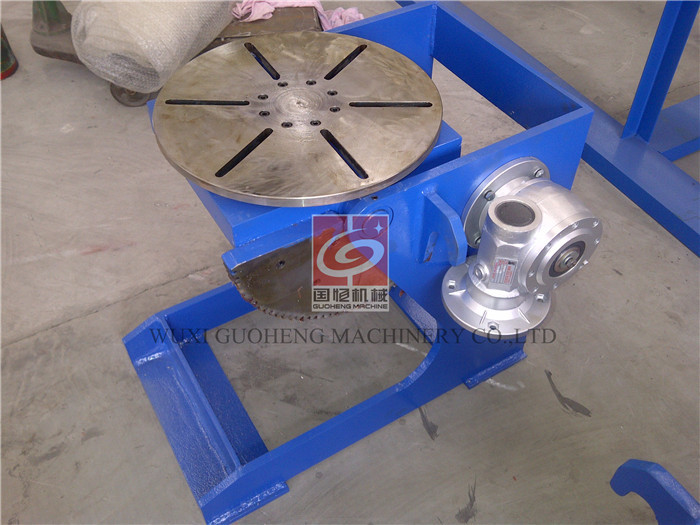

The transmission processes: Servo motor---Gearbox---Output Gears---Helical Tilting Gear---Worktable Rotation.

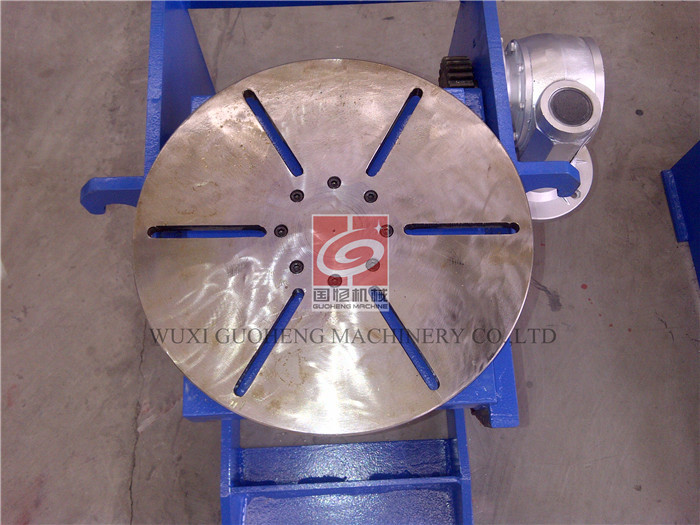

There are 6pieces of T-slot on worktable for quick positioning of material.


Both wall plate is one time CNC cut to shape.


The mainframe is treated with sand blasting and heat treatment after welding.



. Comparative advantage


  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding,  grinding to final
  • assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and  satisfiedinstallation,
  • commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
