150mm 10000KG Pipe Rotary Welding Positioners Heavy Duty
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: weldsuccess
Certification: CE, ISO9000
Model Number: SLB series
High Light:

150mm Rotary Welding Positioners


10000KG Rotary Welding Positioners


Heavy Duty pipe welding positioner

Payment & Shipping Terms
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 20sets/month
Price terms: FOB (Shanghai) or CIF (named port)
Name: Welding Turn Table/welding Rotary Table /welding Positioner
Capacity: 10000KG
Rated Eccentricity Mm: 150mm
Worktable Center Height Mm: 550mm—1550mm
Worktable Elevation Stroke Mm: 1000mm
Usage: Welding Positioning,welding And Cutting Auxiliary Equipment
Product Description

10000KG Heavy Duty Pipe Welding Positioner For Welding Positioning





Rotary welding positioners can be devices that are a must-have for a factory or company looking to increase productivity

when welding a product. These welding positioners act similarly to vertically mounted rotary indexing tables, with a 360

degree rotational range while holding a part or product to be modified or assembled.



 Main Parameters




Max loading KGs


Rated eccentricity mm


Worktable diameter mm


Worktable center height mm


Worktable elevation stroke mm


Worktable elevation speed mm/min


Elevation motor power kW


Worktable rotation speed rpm


Worktable rotation angel


Worktable rotation motor power kW


Powered column and idle column sizes (L*W*H) mm


Power supply

380V 50HZ 3P or tailor made

Above are our standard models and parameters, and it can be designed and manufactured on request.

 * We reserve the right to alter specifications without prior notice.



Main features

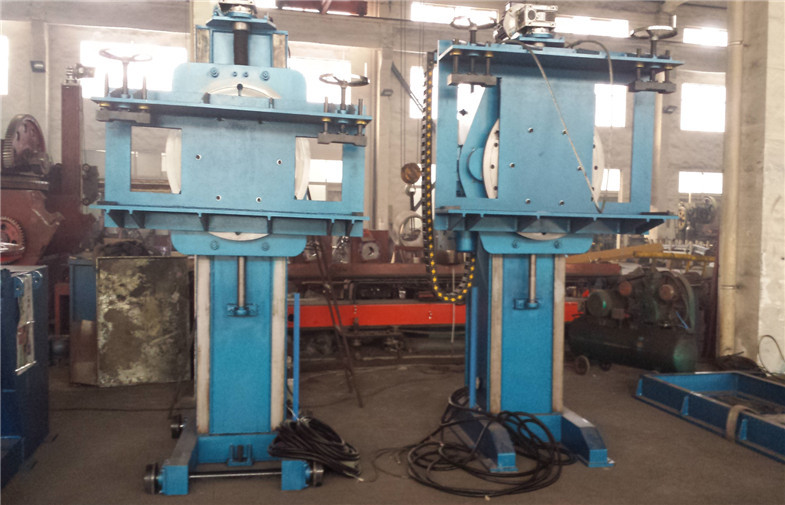

The standard models of our double column elevating welding positioners have the following features:

  • Free standing, robust all steel fabrication;
  • Fully machined turntable of various sizes with centering grooves and T-slots;
  • Sand blasting treatment to main welding parts before painting;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Supplied individually as standard;
  • Hand pendant with Forward&Reverse Rotation and UP&DOWN buttons are standard;
  • Lifting lug;
  • Standard color:



Supply range


  • Double column elevating welding positioners (including driving column, idle column, elevating unit, worktable, etc)                        1set
  • Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m]                    1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                           1set

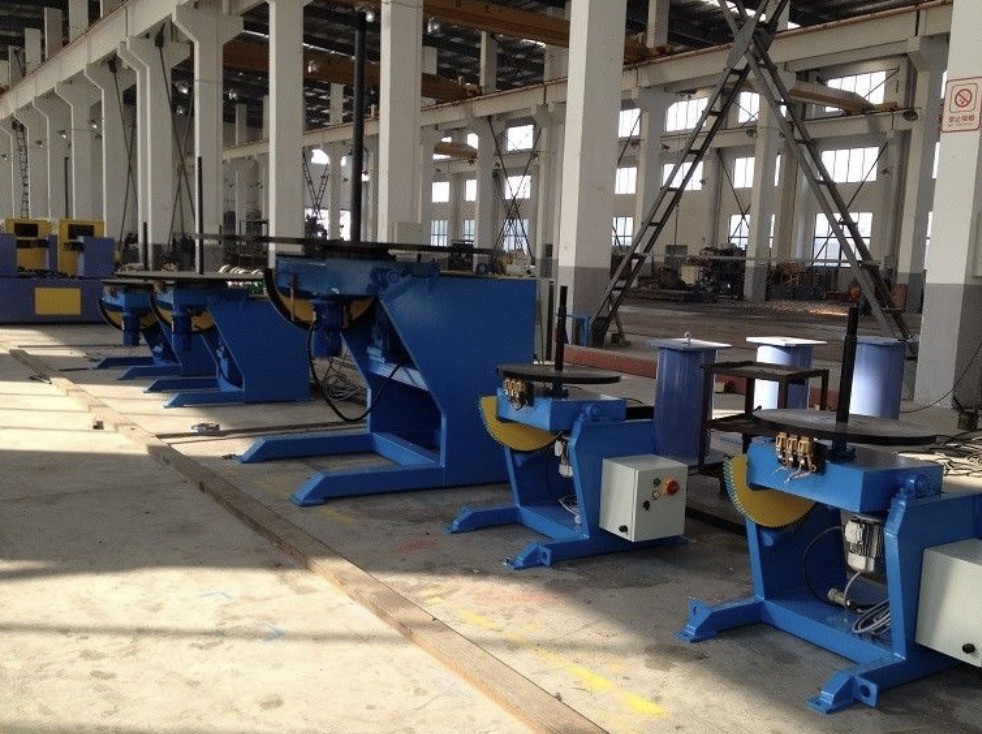

rotary welding machine  photo


150mm 10000KG Pipe Rotary Welding Positioners Heavy Duty 0
