Name: 40Ton Tank Rotators
Brand: weldsuccess
SKU: XHGK-40
Price: 6200 USD

Features Gallery Product Description Request A Quote

Features

Basic Infomation

Place of Origin: GUOHENG

Brand Name: weldsuccess

Certification: CE

Model Number: XHGK-40

High Light:

40Ton Tank Rotators

2000mm Tank Rotators

Payment & Shipping Terms

Packaging Details: Seaworthy Packing

Delivery Time: 25days

Supply Ability: 50sets/month

Specifications

Name: Conventional Welding Rotator

Model: XHGK-40

Applications: Work With Column&boom Manipulator For Tank / Pipe Welding

Applicable Industries: Pressure Vessel , Windmill Manufacturer , Wind Tower Industry , Chemical Industry , Boiler ,etc

Suitable Pipe Diameter: 600--6000mm

Roller Material: Metallic Roller + Rubber Roller

Control Method: Radio Type Remote Control Box

Inspection: Site Idle Running Inspection

Gallery

Product Description

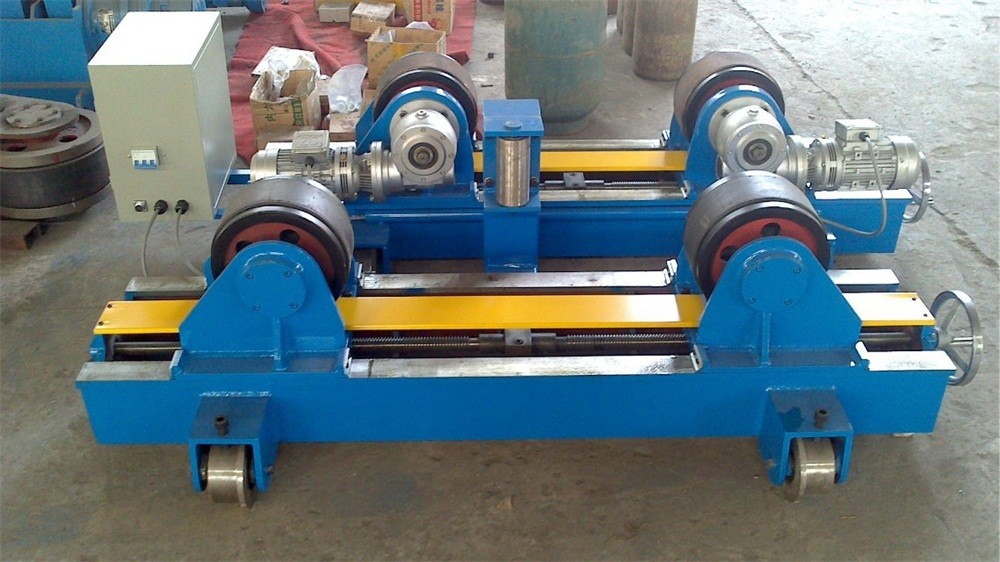

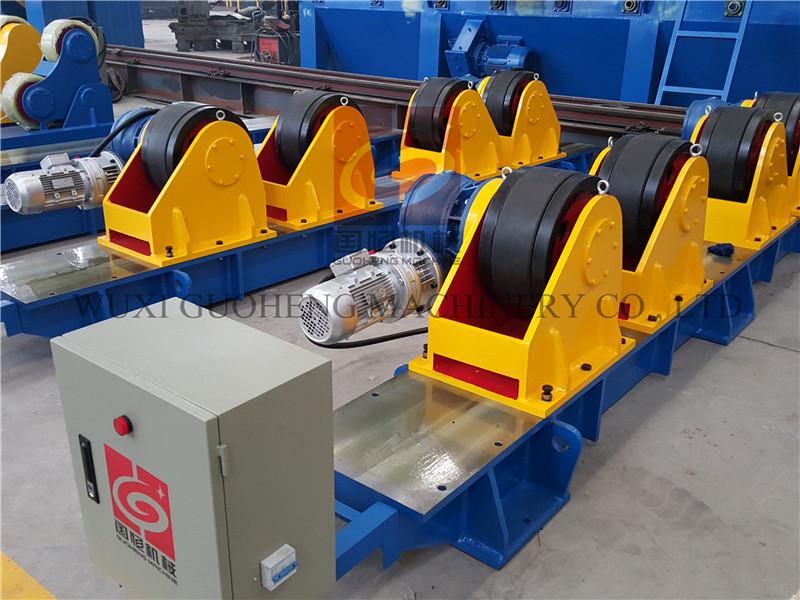

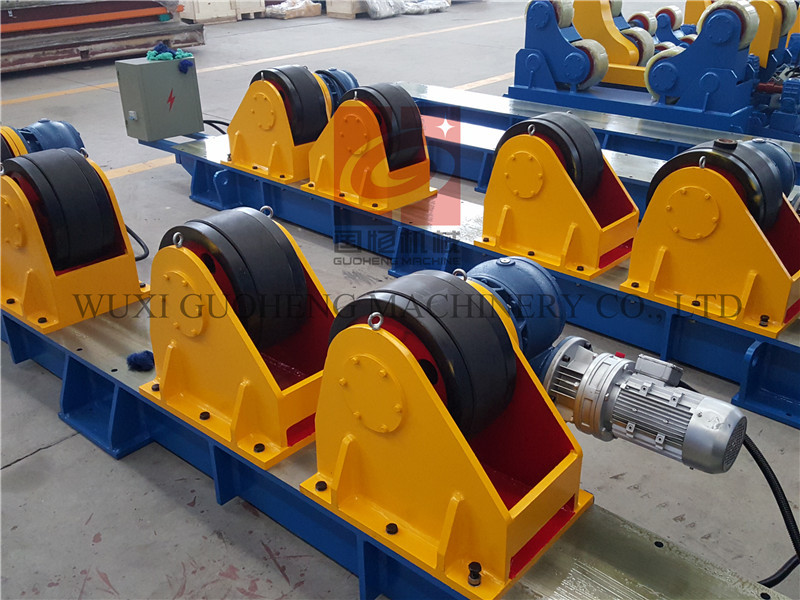

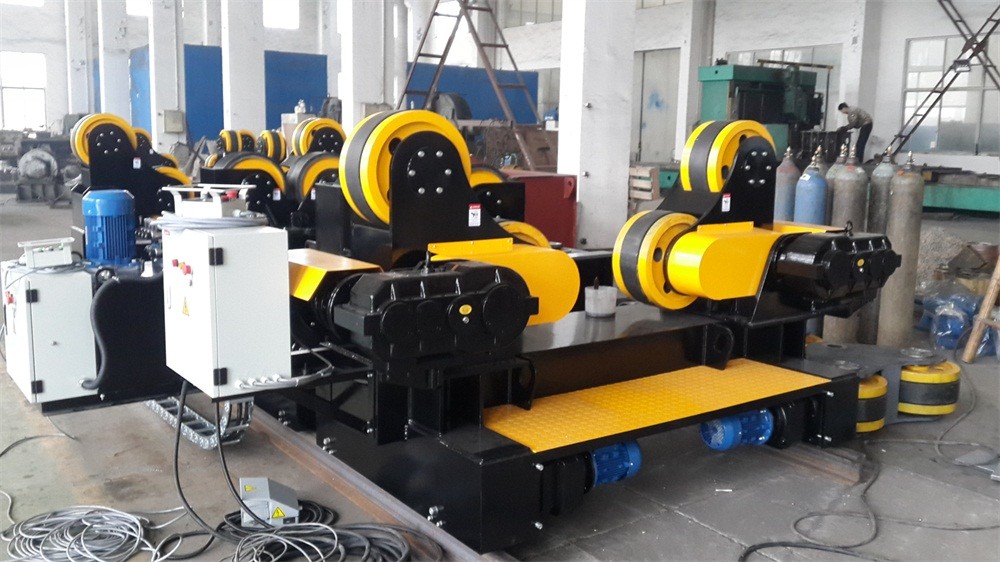

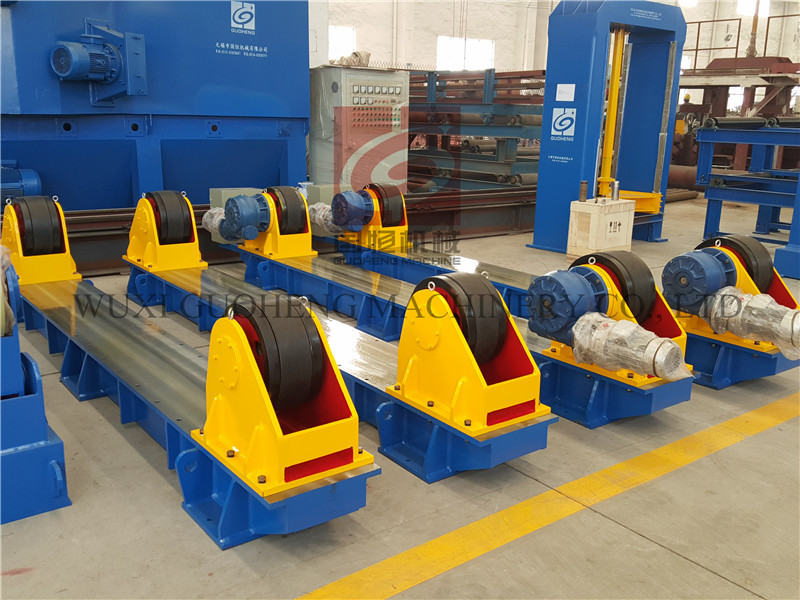

Conventional Welding Rotator 40T for Tank Vessel , Pressure Vessel Automatic Welding

1. Introduction

This series is bolt adjustable type which is broadly used in offshore wind tower, onshore wind tower, chimney, boiler, offshore platform, petrochemical, piping line, oil storage tank, etc. It also can take self-alignment/self-centering rack. Our welding roller beds are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.

2. Main Parameters

Model		XHGK2	XHGK5	XHGK10	XHGK20	XHGK40	XHGK60	XHGK80	XHGK100	XHGK160	XHGK250
Max Load T		2	5	10	20	40	60	80	100	160	250
Suitable Diameter mm	Min	150	250	250	250	600	700	700	700	1000	1000
Suitable Diameter mm	Max	2600	2800	4000	4200	4500	5000	5500	6500	6000	7500
Rubber Roller mm	Dia	200	250	300	350	400	450	500	550	-	-
Rubber Roller mm	Width	80	100	120	120	120	120	120	120	-	-
Metallic Roller mm	Dia	190	240	290	340	390	440	494	540	620	700
Metallic Roller mm	Width	16	20	38	45	60	70	80	100	220	260
Roller Linear Speed m/h		6--60
Way of Speed Control		VFD
Motor Power kW		2×0.18	2×0.37	2×0.55	2×1.1	2×1.5	2×1.5	2×2.2	2×2.2	2×4	2×5.5
Roller Distance mm	Min	260	400	400	450	800	880	900	1000	800	1200
Roller Distance mm	Max	1160	1200	1780	1950	2000	2200	2500	2800	2800	4000
Above are GUOHENG standard models and parameters, and it can be designed and manufactured on request.

3. Main Features

The standard models of GUOHENG Conventional Welding Rotators have the following features:

Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers;
Schneider inverter to realize VFD speed control and synchronous rotation of rollers;
Roller distance is bolt adjustable and roller surrounding angle among 45°～110°;
Roller material is upon client selection or welding features: Metallic Roller + Rubber Roller (combination rollers);
Integral controlled with welding manipulator and welding system, worked as automatic welding center;
All controls are centralized on wireless type remote control box which is valid within 100m;

Optional:
1) Manual/motorized travel bogie;
2) Foot pedal;
3) Synchronous control for more than one set;
4) Mechanical anti-drift device or automatic anti-drift device;
