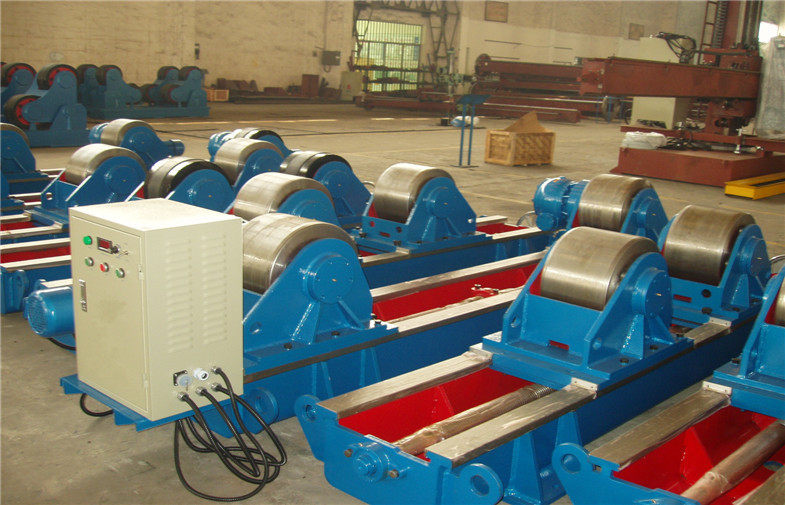

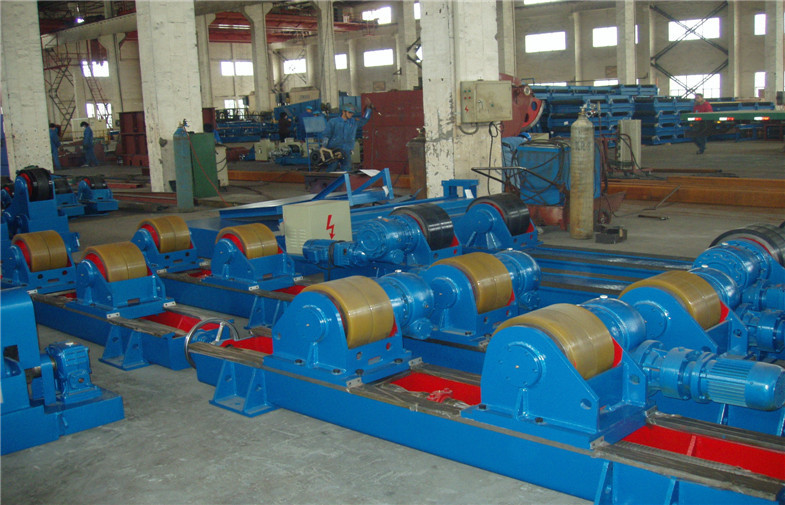

10 Ton Adjustable Pipe Welding Rollers Manual For Wind Tower Production Line
pipe rotator for welding Introduction
Welding rotators are similar to positioners, in that it's a mechanical means to rotate cylindrical vessels. They
minimise handling, increase efficiency, and dramatically improve the quality of workmanship from welders of all skill levels
Main Parameters
Model |
CHGK2 |
CHGK5 |
CHGK10 |
CHGK20 |
CHGK40 |
||
Max loading T |
2 |
5 |
10 |
20 |
40 |
||
Suit diameter mm |
Min |
180 |
250 |
320 |
400 |
600 |
|
Max |
2100 |
3000 |
3800 |
4200 |
4500 |
||
Rubber Roller mm |
Dia |
200 |
250 |
300 |
350 |
400 |
|
Width |
80 |
100 |
120 |
120 |
120 |
||
Metallic roller mm |
Dia |
190 |
240 |
290 |
340 |
390 |
|
Width |
16 |
20 |
38 |
45 |
60 |
||
Linear speed m/h |
6--60 |
||||||
Speed Control |
VFD |
||||||
Motor power kW |
2*0.18 |
2*0.37 |
2*0.55 |
2*1.1 |
2*1.5 |
||
Roller distance mm |
Min |
300 |
400 |
480 |
600 |
800 |
|
Max |
950 |
1300 |
1660 |
1800 |
2000 |
||
Above are our standard models and parameters, and it can be designed and manufactured on request. |
Optional features:
pipe rotators for welding advantage
