H Beam 60 Degree Hydraulic Tilter 20t/Group Tilting Rack
1set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: weldsuccess
Certification: CE, ISO9000
Model Number: FZ60
OEM: Acceptable
High Light:

60Degree Hydraulic Tilter

,

20t/group Hydraulic Tilter

Payment & Shipping Terms
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 20days
Payment Terms: TT/LC
Supply Ability: 30sets/month
Price terms: FOB (Shanghai) or CIF (named port)
Specifications
Product Description

H-beam Transportation Hydraulic Tilter Tables Auxiliary Flipping Rack





Quick Details



  • This equipment is a kind of auxiliary flipping rack for H-beam welding area for supporting work-piece and making it at flat position of filleting welding;
  • Upon finish of welding, work-piece can be flipped to “H”-shape, for easy transportation of H-beam;
  • Beam welding structure with enough capacity and intensity;



1. Introduction



This equipment is a kind of auxiliary flipping rack for H-beam welding area, 3 sets work together, for supporting work-piece and making it at flat position of filleting welding in H-beam welding area. Upon finish of welding, work-piece can be flipped to “H”-shape, for easy transportation of H-beam. It has merits of high efficiency, accurate and reliable.

It also can be used in other applications. We also welcome special requirements.



2. Main Parameters



Model

FZ60

Tilting angle (O)

0-60O

Overturning work piece weight (t)

20t/group

Overturning oil cylinder diameter (mm)

φ125

Max pressure of hydraulic system (MPa)

16

Above are our standard models and parameters, and it can be designed and manufactured on request.


* We reserve the right to alter specifications without prior notice.

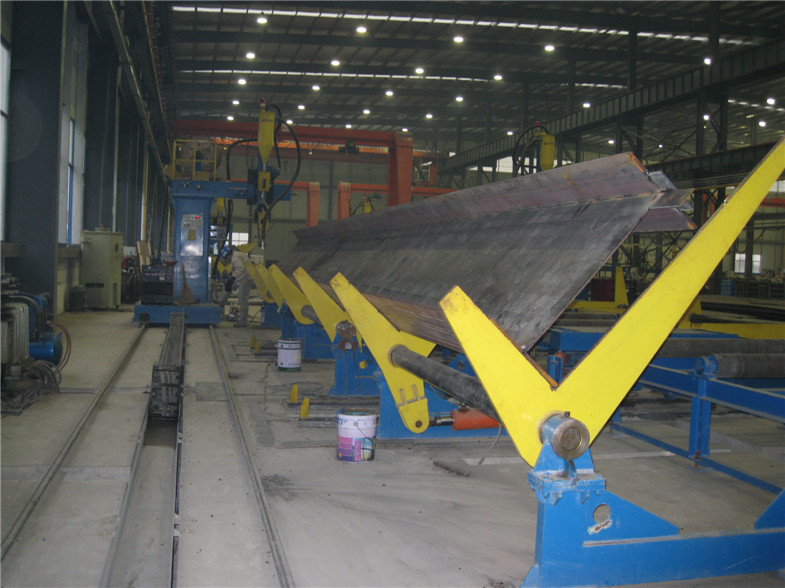

3. Reference photo



H Beam 60 Degree Hydraulic Tilter 20t/Group Tilting Rack 0



4. Comparative advantage



  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
