Overturning Seam Box Beam Welding Machine 90 Or 180 Degrees
1set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Guoheng
Brand Name: weldsuccess
Certification: CE, ISO9000
Model Number: FZ series
OEM: Acceptable
High Light:

180Degrees Box Beam Welding machine

,

90Degrees Box Beam Welding machine

Payment & Shipping Terms
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 30days
Payment Terms: TT/LC
Supply Ability: 10sets/month
Price terms: FOB (Shanghai) or CIF (named port)
Specifications
Product Description

 Box Beam Welding Production Line



Quick Detail



  • This overturning machine is mainly used for overturning the box beam 90 or 180 degrees so as to feed to next stage for welding;
  • It’s hydraulic type overturning. Three oil cylinders drive 3 pieces of L-shaped rack turn 90 or 180 degree synchronously;
  • Beam welding structure;



1. Introduction


The equipment mainly used for overturn 90° or 180° of work piece during the process of box-beam production. It is the special equipment for overturning and movable, which is widely used for welding overturning, straightening overturning and manual welding.
It also can be used in other applications. We also welcome special requirements.



2. Main Parameters




Model

FZ180

Applicable work piece weight (t)

≤20t

Travel motor power (kW)

1.5

Travel speed (m/min)

5

Overturning oil cylinder diameter (mm)

φ150

Max pressure of hydraulic system (MPa)

16

Rail center distance (mm)

700 or upon actual conditions

Above are our standard models and parameters, and it can be designed and manufactured on request.


* We reserve the right to alter specifications without prior notice.

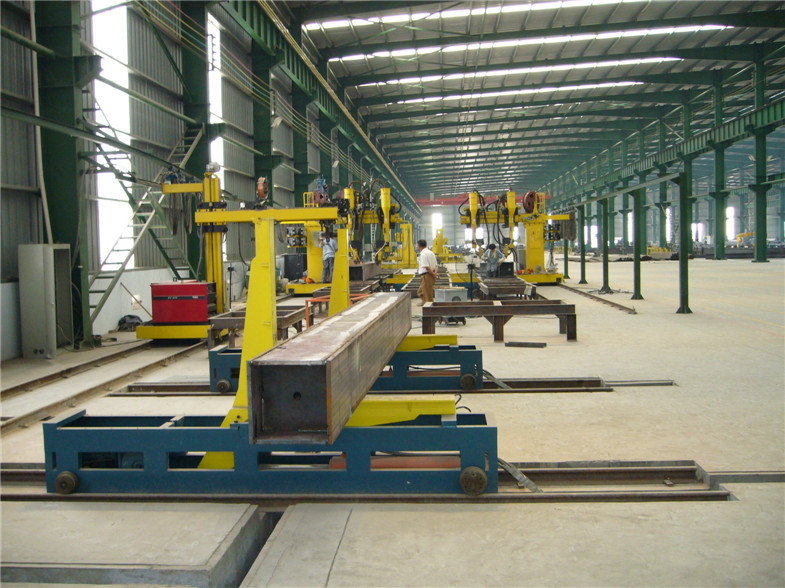

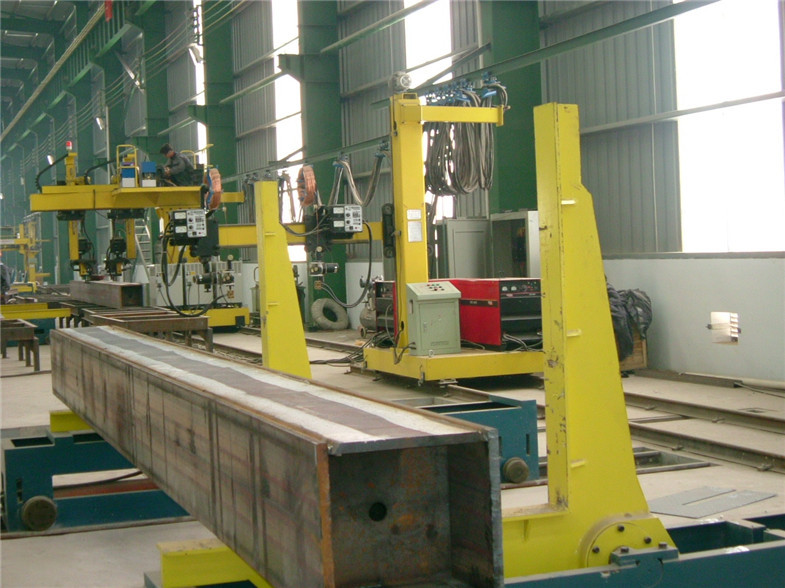

3. Reference photo



Overturning Seam Box Beam Welding Machine 90 Or 180 Degrees 0



4. Comparative advantage



  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
