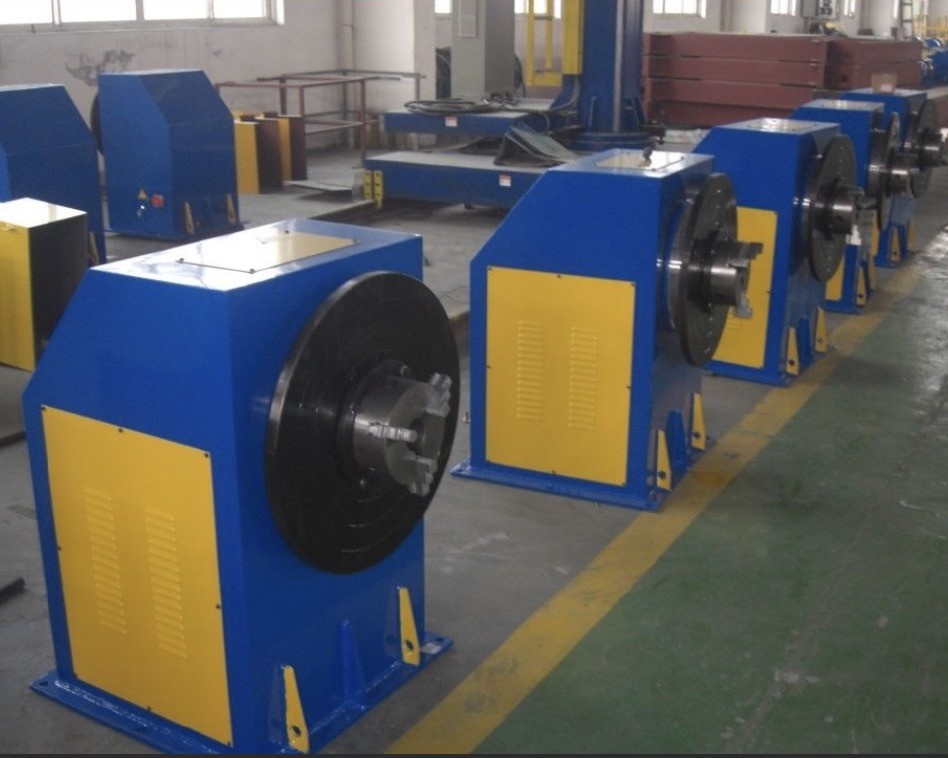

Metal Fabrication 300KG Industrial Welding Positioner , 2rpm Welding Positioner Table
1set
MOQ
1100USD
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: weldsuccess
Certification: CE
Model Number: HB3
High Light:

Metal Fabrication industrial welding positioner

,

300KG industrial welding positioner

,

2rpm welding positioner table

Payment & Shipping Terms
Packaging Details: Seaworthy Package
Delivery Time: 15days
Supply Ability: 50sets/month
Specifications
Name: Rotary Welding Positioner
Model: HB3
Rated Load: 300KG
Tilting Angle: 0--120°
Rotation Speed: 0.2--2rpm
Rotation Table Diameter: Φ600
Tilting Speed: About 0.9rpm
Max Eccentricity Distance: 150mm
Max Gravity Center Distance: 200mm
Applicable Industries: Metal Fabrication, Pressure Vessel, Robotic Industries, Automatic Welding Jobs, Etc
Product Description

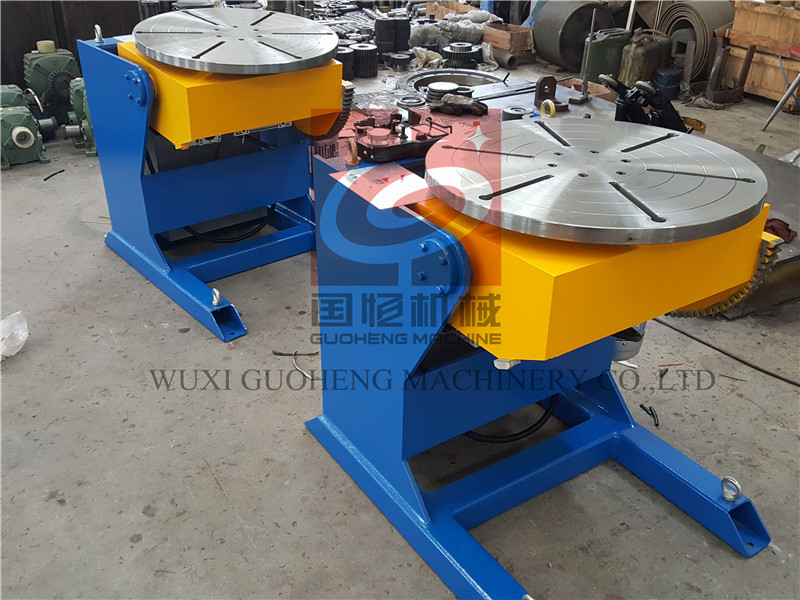

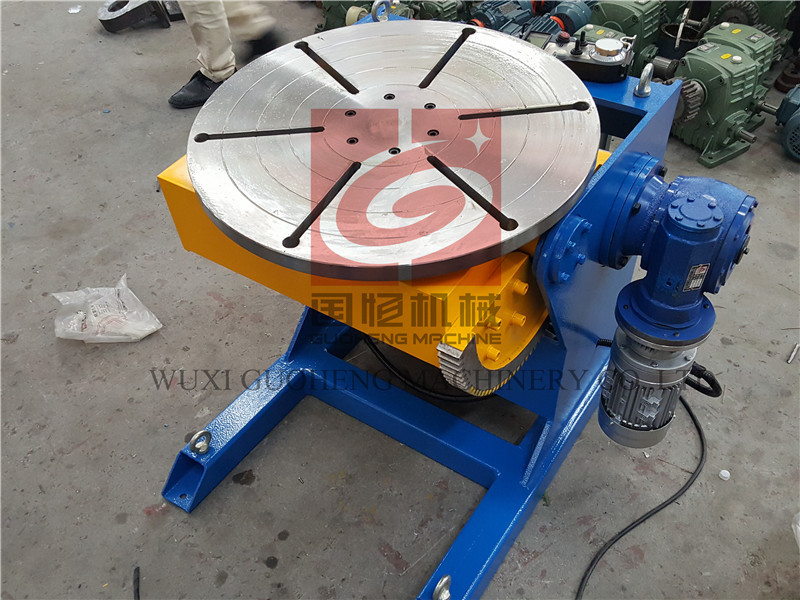

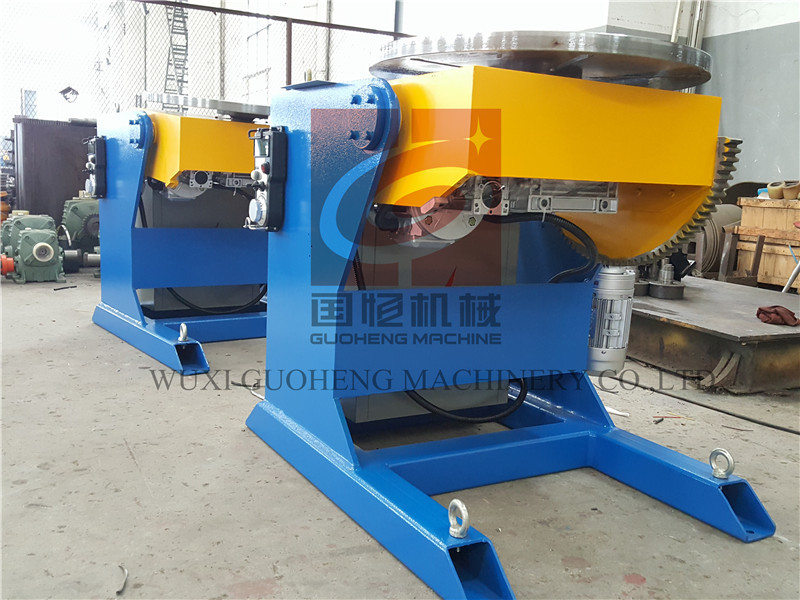

300KG Rotary Welding Positioner with France Schneider Inverter for Metal Fabrication

Detailed Product Description


Rotary Benchtop Welding Positioners / Welding Table For Industries



Quick Detail:

  • HB self-adjustable welding positioner which consists of working table and pedestal.
  • Working table can do two acts as revolving infinitely and tilted within degree 0°~120°, which make the tank at ideal position.
  • Can add a chuck in the welding table to fix (clamp) the work-piece well.
  • With T-slots on the table surface for clamping work-piece



Specifications



Model HB1 HB3 HB6 HB12 HB20 HB30 HB50 HB80 HB100 HB150 HB200 HB300 HB500
Rated loading KG 100 300 600 1200 2000 3000 5000 8000 10000 15000 20000 30000 50000
Revolve speed rpm

0.1

-1

0.2

-2

0.1-

1.1

0.1-

1

0.09

-0.9

0.08

-0.8

0.07

-0.7

0.06

-0.6

0.06

-0.6

0.05-0.5 0.05-0.5 0.04-0.4 0.04-0.4
Tilt speed rpm 2 ≈0.9 ≈0.8 ≈0.5 ≈0.4 ≈0.3 ≈0.2 ≈0.14 ≈0.14 ≈0.14 ≈0.14 ≈0.10 ≈0.10
Work-table dia.mm Φ400 Φ600 Φ800 Φ1000 Φ1200 Φ1400 Φ1600 Φ2000 Φ2000 Φ2200 Φ2500 Φ3000 Φ4000
Max Eccentricity distance mm 100 150 150 200 250 250 250 200 200 200 200 200 200
Max gravity center distance mm 150 200 250 250 300 400 400 400 400 500 630 630 800
Work-table tilting angle 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120 0-120
Revote driving power kw 0.06 0.37 0.37 0.75 1.1 1.5 1.5 2.2 3 3 4 7.5 11
Tilting driving power kw 0.18 0.37 0.55 1.1 1.5 2.2 3 4 4 5.5 7.5 11 18.5
Revolve dia.at 90°mm ≦600 ≦1000 ≦1500 ≦1500 ≦2000 ≦2300 ≦2800 ≦3200 ≦3200 ≦3400 ≦3400 ≦4200 ≦5700
sizes L mm 740 930 1300 1500 1700 2046 2400 2900 2900 3525 3675 4200 5600
H mm 420 700 900 1000 1200 1400 1860 1970 1970 2252 2270 3000 3600
B mm 527 820 1000 1200 1200 1680 1730 2260 2260 2270 2750 3300 4400
Equipment weight kg 70 260 700 1000 2000 3350 4300 8000 8200 14000 17000 20000 27000
Speed adjusting way Rotation speed VPD control
Tilting speed fixed (Common break motor)



Description:



Welding positioner is consisting of worktable revolving mechanism, overturning device and electric control system.

The work-piece can be reach to the most suitable position through worktable revolving and overturning device.

The worktable revolving controlled by step-less frequency conversion to achieve a best welding speed.

Standard type welding positioner can't meet all work-pieces’ processing, please provide your work-piece’s weight, shape

and other specification in detail so that we can provide the best solution way for your reference.



Applications:



It used in many industries such as pipe, tank, pressure vessel, boiler, freezing equipment, power station construction,

metallurgical, engineering machinery, marine building, and petro-chemical industries etc.
