0.1-1rpm 100kg Pipe Benchtop Welding Positioner For Industries
1set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: weldsuccess
Certification: CE
Model Number: HB06
High Light:

100kg benchtop welding positioner

,

benchtop welding positioner

,

1rpm pipe positioner

Payment & Shipping Terms
Packaging Details: Seaworthy Packages
Delivery Time: 20days
Supply Ability: 20sets/month
Specifications
Product Description



100kg Rotary Benchtop Welding Positioners / Welding Table For Industries





Quick Detail:



  • HB self-adjustable welding positioner which consists of working table and pedestal.
  • Working table can do two acts as revolving infinitely and tilted within degree  0°~120°, which make the tank at ideal position.
  • Can add a chuck in the welding table to fix (clamp) the work-piece well.
  • With T-slots on the table surface for clamping work-piece





Description:



Welding positioner is consisting of worktable revolving mechanism, overturning device and electric control system. The work-piece can be reach to the most suitable position through worktable revolving and overturning device.

The worktable revolving controlled by step-less frequency conversion to achieve a best welding speed.

Standard type welding positioner can't meet all work-pieces’ processing, please provide your work-piece’s weight, shape and other specification in detail so that we can provide the best solution way for your reference.





Applications:



It used in many industries such as pipe, tank, pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.





Specifications:



Model

Rated weight bearing(kg)

rotation speed (rpm)

Speed of table tiling (rpm)

Turning angle(°)

Size of working table(mm)

Turning

Over turning

May of

setting

Max distance of gravity center(mm)

Max distance of distance(mm)

Max turning diameter(mm)

HB-01

100

0.1-1

By manual

0-120

Φ400

0.18

/

Frequency conversion stepless speed

100

150

Φ600

HB-03

300

0.2-2

By manual

0-90

Φ600

0.18

/

100

100

Φ800

HB-06

600

0.09-0.9

1.1

0-90

Φ1000

0.75

0.75

100

100

Φ1500

HB-12

1200

0.05-0.5

0.67

0-90

Φ1200

1.1

1.1

150

100

Φ2050

HB-30

3000

0.05-0.5

0.23

0-120

Φ1400

1.5

1.5

200

150

Φ2100

HB-50

5000

0.05-0.5

0.14

0-120

Φ1500

2.2

3

300

200

Φ2500

HB-100

10000

0.05-0.2

0.14

0-120

Φ2000

3

5.5

400

250

Φ3240

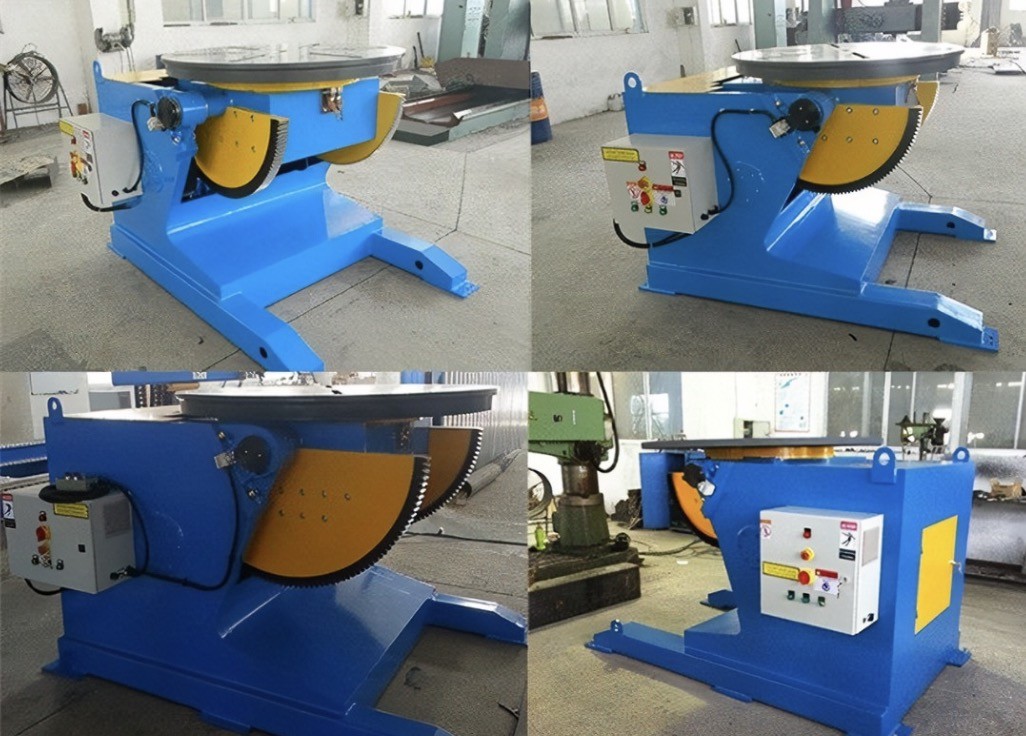

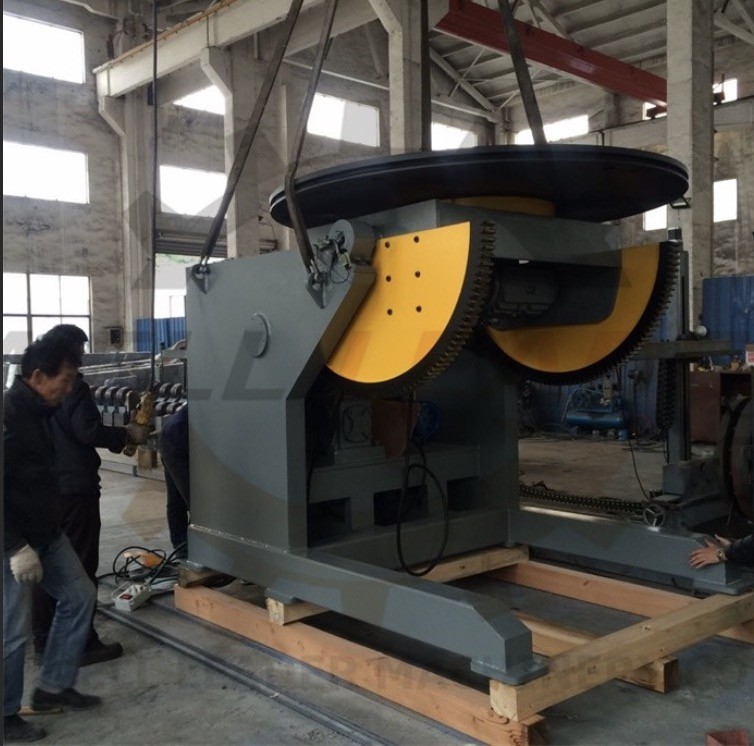

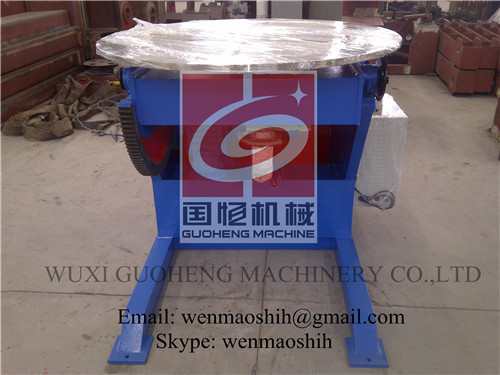

Reference Photos



0.1-1rpm 100kg Pipe Benchtop Welding Positioner For Industries 0



0.1-1rpm 100kg Pipe Benchtop Welding Positioner For Industries 1
