Automatic 20T Pipe Welding Rotator 2.2KW With Manual Travel Bogie
1set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: weldsuccess
Certification: CE
Model Number: HGZ20Y
High Light:

20T Pipe Welding Rotator

,

2.2KW Pipe Welding Rotator

,

Manual Travel Bogie pipe rotator

Payment & Shipping Terms
Packaging Details: Seaworthy Packaging
Delivery Time: 20days
Specifications
Name: Pipe Rollers For Welding
Rated Rotation Capacity: 20T
Suitable Pipe Diameter: 1800--4000mm
Linear Speed: 6--60m/h
Motor Power: 2.2KW
Applicable Industries: Wind Tower Production, Welding, Piping, Offshore Platform, Boiler, Chemical
Product Description

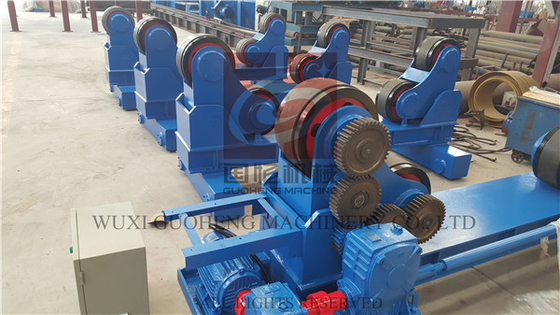

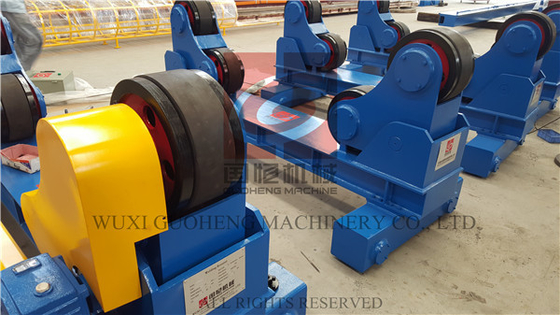

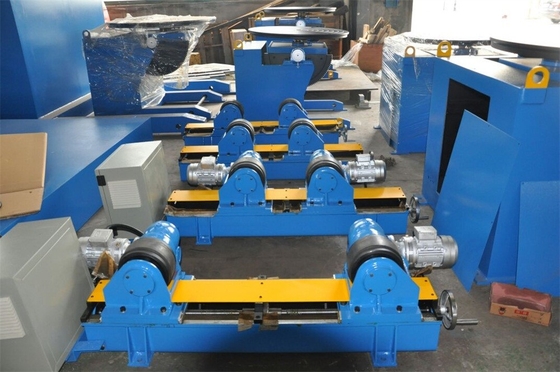

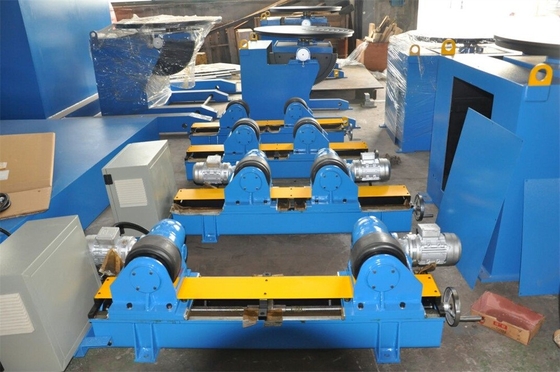

20T Pipe Welding Rotator with Manual Travel Bogie , One Motorized unit and Three Idle Units



Features :



1. Our self-aligning welding rotators are available in many models, with a wide range loading capacities.

2. Electromagnetic stepless speed control or variable frequency drive is adopted for speed regulation.

3. Our self-aligning welding rotator can be supplied with the option of rubber wheel, PU wheel and steel wheel.

4. The manual control box is wireless type which allows convenient operation.





Specification of self aligned welding rotator



No

Item

Parameters

1

Model

HGZ20

2

Rated load (T)

20 (1driving unit+3idle units)

3

Suitable work-piece

d mm

1800

D mm

4000

4

Roller Dia. and Width

Rubber roller

Diameter

350

Width

120

Metallic roller

Diameter

340

Width

30

5

Linear speed (m/h)

6-60

6

Way of speed control

VFD

7

Motor power (kW)

2.2

8

Rail span

2000

9

Travel bogie moving

manual

10

Roller distance (mm)

2000

11

Power supply

380V 50HZ 3P



Name of the machine:


welding rotator, pipe welding rotator, pipe turning rolls, welding turning rolls, welding roller, tank turning rolls,

pipe turning rolls, tube turning rolls, fit up rotator, self-aligned welding rotator, self-aligning welding rotator,

self adjustable welding rotator, self aligned roller stand, wheel frame, roller frame for wind tower welding,

automatic adjustable welding pipe rotator, pipe welding rotator, bolt adjustable welding rotator, sand blasting rotator,

painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station;
