Plate Edge Beveling Machine

China Plate Edge Beveling Machine supplier
Plate Edge Beveling Machine supplier Plate Edge Beveling Machine supplier

Large Image :  Plate Edge Beveling Machine

Product Details:

Place of Origin: China
Brand Name: Guoheng
Certification: CE, ISO9000
Model Number: GD20
OEM: Acceptable

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 20days
Payment Terms: TT/LC
Supply Ability: 20sets/month
Price terms: FOB (Shanghai) or CIF (named port)
Contact Now
Detailed Product Description
High Light:

edge milling machine

,

plate beveling machine

Plate Edge Beveling Machine

Quick Details



  • This machine adopts chamfering principle to cut and bevel tubes;
  • Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
  • Suitable for pipe diameter up to 114mm;



1. Introduction



This machine adopts the chamfering principle to mill the edge of plate as per the required angle and to get the welding groove. It’s very convenient in operation and very high efficiency.



2. Main Parameters



Model

GD20

Plate material

Q235

16Mn

IC18Ni9Ti

Max groove width

20

16

12

Chamfering angle °

22—55

Min straight edge mm

2

Plate thickness mm

6--45

Power supply

AC380V, 50HZ, 3P or tailor made

Above are our standard models and parameters, and it can be designed and manufactured on request.


* We reserve the right to alter specifications without prior notice.



3. Main features



  • Lowest investment and high efficiency;
  • Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Standard color:

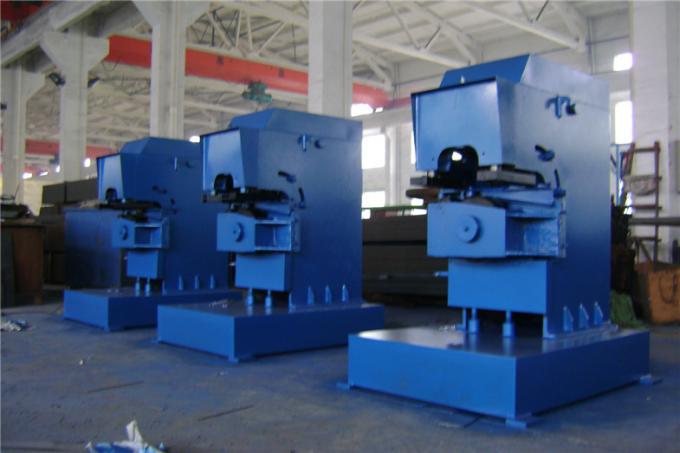

4. Reference photo



Plate Edge Beveling Machine



5. Comparative advantage



  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
